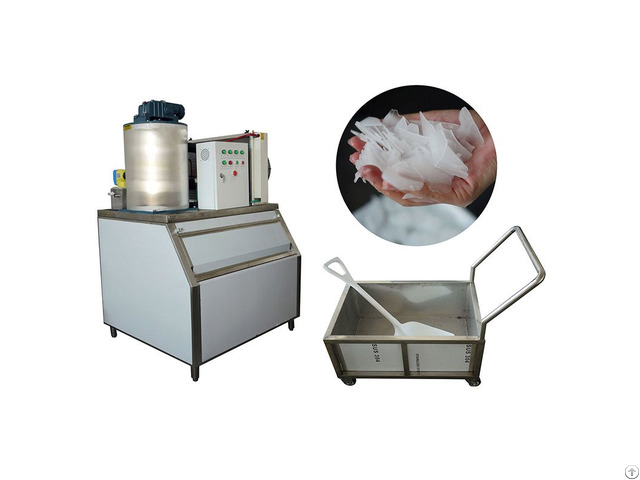

Flake Ice Machine 500kg Ton - China

The flake ice has an excellent cooling effect and has the characteristics of large cooling capacity and rapid speed.

Therefore, it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling and the like.

Flake Ice Machine Application

The flakes have no sharp edges and corners and will not stab frozen objects.

It can enter the gap between the objects to be cooled, reduce heat exchange, maintain the temperature of ice, and have a good moisturizing effect.

Ice Flake machine Category

The flake ice maker is a kind of ice machine.

It can be divided into freshwater flake ice machine and seawater flake ice machine according to the water source.

It is mostly an industrial ice machine.

Flake Ice Feature

The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.

Flake ice flat in shape

Safety and Sanitation

High reliability and low breakdown rate

High efficiency and Energy Saving

Simple maintenance and convenient moving

500kgs Commercial Flake Ice machine specification

Item Name Fresh Water Ice Machine Sea Water Ice Machine

Model YTC-0.5TF YTC-0.5TS

Compressor power 3HP 5HP

Ice Evaporator Carbon Steel Stainless Steel

Daily Output 500kg/24H 500kg/24H

Ref.

Capacity(Kcal) 2580 5160

Temp.

Evaporator(℃) -22(℃) -18(℃)

Temp.

Condenser(℃) 40(℃) 40(℃)

Total Power (kW) 2.37 4.11

Cooling Mode Air Cooled Air Cooled

Power Supply 380V/3PH/50Hz 380V/3PH/50Hz

Refrigerant R404 R404

Unit Weight 215 235

Unit Size 1100x820x740mm 1100x820x740mm

Ice Storage Size 1100x960x1070mm 1100x960x1070mm

The non-standard power supply needs custom compressor like 220V/3PH/1PH 60hz.

A standard cooling mode is an air cooled for a commercial flake ice maker.

Can be design to water cooling to meet customer needs.

500kg, 1Tton, 2Ton commercial flake ice machine is widely applied in supermarket chain, hotels, seafood market, food processing facility and vegetable preservation industrial.

More information please view here.
