Four Link Slotting Machine - China

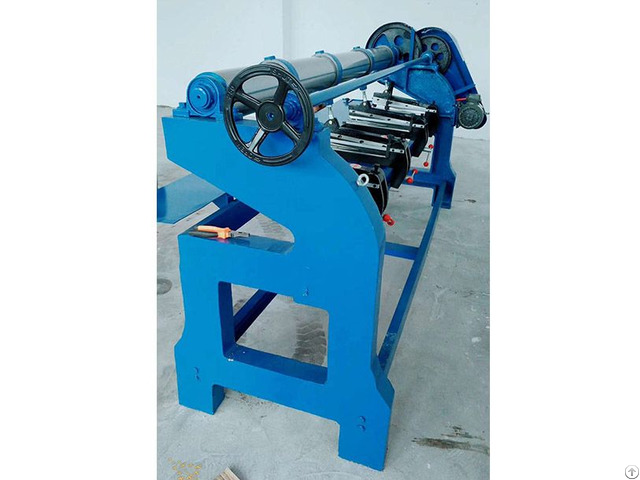

Four Link Slotting Machine

It is used to produce single, double or Multi layer corrugated carton.

Machine usage and characteristic

1 - It is used to produce single, double or Multi layer corrugated carton.

2 - It has compact structure, convenient adjustment.

3 - The slotting blade is designed as sawtooth, saving effort and durable.

4 - The machine with rack, easy adjustment slotting size.

This equipment is the necessary equipment for the carton sample maker and the production of small batch cartons.

The machine has the advantages of quick adjustment, beautiful slotting and so on.

The machine includes body, transmission, table, motor four major parts.

The frame is whole cast iron, the structure is stable and reliable, to ensure smooth operation during operation.

This machine is mainly driven by the belt and gear reduction to drive the crankshaft movement, while dragging four groups of blade seats to run up and down, and complete the slotting work.

The main drive is double reduction, the first level for the V-belt, the second level for the gear.

Before starting, filled lubricating oil to the lubricating parts of the machine, start and running 5-10 minutes and check whether the machine runs well or not.

If there is no abnormality, start to slot the test-cutting board.

Keep the work of the shaft clean, add lubricating oil each day to ensure that all parts of the shaft lubrication.

All running connections parts should be lubricated too.

Parameter Model 2000 2500 3000

Width of max cutting paperboard (mm) 2000 2500 3000

Size of breaking (W*D)mm 7*350 7*430 7*530

Size of angles cutting (W*D)mm 55*350 55*430 55*530

Speed of paper cutting (pcs/min) 40 40 40

Driving power (kw) 1.5 1.5 2.2

Weight(kg) 1000 1200 2000

Size of configuration 2250*1150*1500 2850*1150*1500 2850*1500*1500 Waste Stripping Machine, Horizontal Type Waste Paper Baler Machine, Sheet Board Pasting Machine Supplier.
