Hy T35 Co2 Laser Power Supply For Laser Plywoodstamp Engraver - China

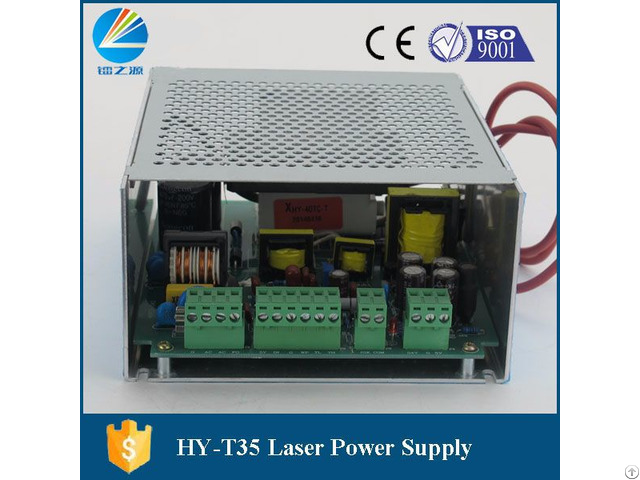

Model: HY-T35 for 30w, 35w, 40w Co2 Laser Marking Machine

1) 35w Laser Marking Machine Main Features

Specificity: It is designed exclusively for engraving machines and can be applicable to 40W

and 30W laser tube.

Powerful Features and High Integrity: It makes the high voltage power supply, drive control

board and auxiliary power of drive motor integrate in one board, so as to reduce external

lead and strengthen the anti-interference ability.

Advanced Technology: The power adopts Soft Switch Technology, so dramatically increase the efficiency of the power supply, boost reliability of the power supply and also lengthen the life

of laser.

High Security: The input and output of power supply are separated completely to avoid electric shock.

Easy Control: The start and stop of laser can be easily controlled by TTL level.

And there are protection switch to test the external water, ventilation, etc.

Easy Control of Laser Power: The laser power conversion can be controlled by a regulation resistance.

The power supply has open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.

Application: Engraving, seal-cutting, etc.

2 - Laser Power Supply Specification:

Input Input Voltage AC220V or AC110Vto be specified when placing order

AC frequency 47-440HZ

Cold Surge Current ≤60A(AC220V Input) ≤30A(AC110 Input)

Current Leakage ≤0.7MAAC220V Input ≤0.4MA(AC110V Input)

Output Max Output Voltage DC 25KV DC 5V DC 24

Max Output Current DC 20MA 3A 2A

Efficiency ≥90full load

MTBF ≥10000H

Response Speed ≤1msfrom the switch Signal is given to the output current up to 90% of the setting current

Control Interface TTL level switch control (details refer to the control terminal specification)

Withstand Voltage Input-Output, Input-Shell: AC1500V 10MA 60S

Protection can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell

Environment Operating Temperature-10~40, Relative Humidity (RH)≤90

Cooling Way Natural air cooling

Dimension L×W×H=210*180*60(mm)
