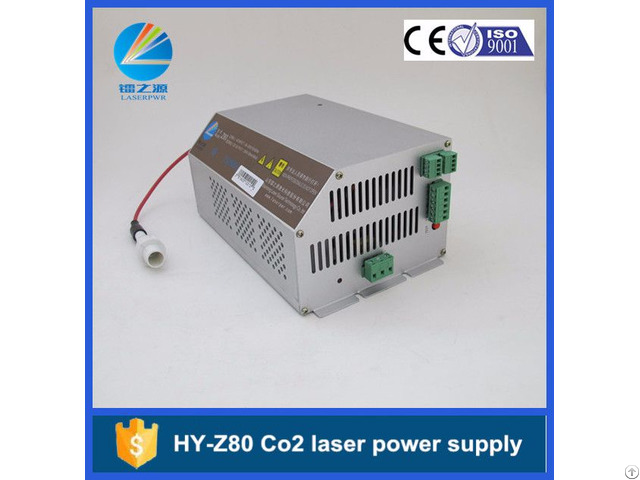

Hy Z80 Newest Co2 Power Supply With 80w For Reci Efr Spt Tube - China

Ⅰ.

Main features

Unique design with several patents

High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.

Make the maintenance much easier: User can judge the problem by himself.

Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.

Universal: with PFC function, AC90-250V input voltage range, globally universal.

Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.

More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.

Excellent cover with patent design: Good appearance, better heat dissipation.

Improved current control mode, more stable laser, better compatibility.

Item Z80 Z100 Z150

Input Input voltage AC90-250V

AC frequency 47---440Hz

Max input power 500W 700W 900W

Max input current

(when 90V input) 6A 8A 10A

Output Max output voltage 40KV 45KV 55KV

Max output current 28mA 32mA 38mA

Efficiency ≥90%(when full load)

MTBF ≥10000 hours

Response speed ≤1mS(the time from the signal is given to output current

reaches 90% of set current)

Switch control mode TTL

Power control mode PWM(>20KHz) or 0-5V or 0-3.3V analogue

Communication mode Special serial port

Withstand voltage Input-output, input-shell: AC1500V 10mA 60s；

Working environment Temperature(-10~40)℃, relative humidity: ≤90%

Cooling Force air cooling

Dimension L*W*H(mm) 235*144*104 278*144*104 330*144*104

Weight (KG) 2.15kg 2.45kg 3.2kg

Color Silver
