Industrial Automatic Boiler - China

industrial automatic boiler professional slag removal machine coal feeder conveyor belt Scraping Slag Off Conveyor for sale Scraper slag machine is mechanization discharge device used for 1 ~ 6 t/h chain grate and reciprocating grate boiler.

Boiler adopts mechanization dump, reduce the intensity of labor, eliminate slag dust pollution, improved health conditions of boiler room.

Product Description

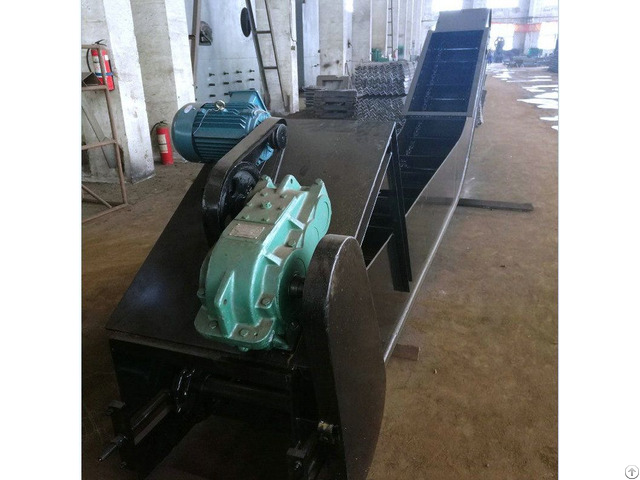

double-chain scraper slag remover is suitable for slag removal of industrial boilers with a slag outlet arranged below.

It has the characteristics of small floor space and long service time.

The high-temperature ash discharged from the furnace is firstly broken into small pieces by the roller-type slag breaker to facilitate cooling and transportation.

After the crushing of the ash and slag into the water-cooled screw slag extractor and between the screw blade and the outer cylinder cooling heat transfer back out.

If necessary, air lock (star ash discharge valve) can be provided at the outlet of the slag cooler.

Ash inlet temperature is less than 900 ℃, clinker size less than 100 mm, the transmission distance is 4 to 7 m, the level of the installation TZ coal feeder conveyor belt Technical Parameters

Model Q'ty Delivery Distance Motor Power Groove Width Groove Height Velocity A Tunnel

(W×D×L)

LGC-A30 3 25 1.5 303 500 0.045 4000

(It can be lengthened as customers' requirement) 1000×1000×∑L 50 2.2 700 0.045 LGC-A40 4 25 1.5 404 500 0.045 1000×1000×∑L 50 2.2 700 0.045 LGC-A50 6 505 500 1150×1000×∑L 50 2.2 700 LGC-A60 10 25 3 606 500 1300×1000×∑L 57 4 700 LGC-A80 14 25 4 808 500 0.072 1500×1000×∑L 57 5.5 700 0.072 LGC-A100 16 25 5.5 1010 500 0.072 1800×1000×∑L 60 7.5 700 0.072 Advantages of Boiler Slag Removal Machine

1 - The cast stone slab is placed at the bottom of the base groove, which can effectively improve the wear resistance of the material and prolong the service life of the base groove.

2 - The scraper material of the double-chain scraper is cast steel, the transmission chain is 25MNV high-strength material for mining, and the structure is double-row ring welding.

In the process of transporting ash, the tightness of the chain can be automatically adjusted by the device at the front of the device.

3 - The double-chain slag removing machine can reduce the labor intensity of the furnace workers, improve the working conditions of the boiler room, and ensure the boiler production efficiency to the greatest extent.

4 - Compared with other closed type slag removing machines, the double-chain type is an open design, which can ensure that all ash can be discharged to the outside of the boiler.

5 - The scraper support is a cast stone rail support method, which avoids various problems of supporting by the rollers, and can effectively reduce the maintenance cost of the equipment.

6 - It is suitable for the slag removal of single-drum boilers with all slag outlets arranged at the rear and lower parts of the boiler.

7 - The chain is automatically tensioned by manual or machine.

The double overload protection system of the motor can ensure that the chain is not dragged, not stacked, and the ash is transported smoothly, meeting the requirements of industrial boilers and heating boilers.
