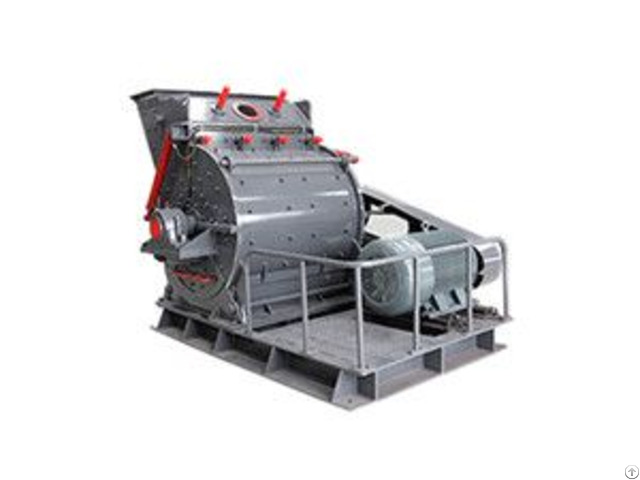

Industrial Coarse Grinding Machine - China

Industrial coarse grinding machine custom Stone Powder processing equipment Rough mill manufacturer Coarse Powder Hammer Mill:

engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.

Working principle of Coarse Powder Hammer Mill :

Coarse Powder Mill mainly consists of frame, rotor, support iron and grate bars.

The frame is divides into two parts: upper part and low part, which are welded by steel plates after being cut.

Liners made of high manganese steels within the frame can be replaced after being worn out.

The rotors consist of turnplates, pin shafts, and hammers which are grouped regularly in the main shaft.

The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers.

Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and the thrown fiercely to the support iron for further crushing.

Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size.

The size of the final product can be adjusted by changing the grate bars.

The gap between the rotors and the grate bars can also be adjusted according to different requirement.

To avoid the plugging of the crusher, the proportion of water for the crushing material is no more than 20%.

Industrial roughing machine Applications： Coarse Powder Hammer Mill engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.

Industrial Coarse Grinding Machine Features： 1 - High manufacturing capacity and low power consumption;

2 - Uniform particle size with high crushing ratio;

3 - Simple structure;

4 - Easy operation and low investment.

Technical Data： Specification and technical data of the Coarse Powder Hammer Mill Model PC4008-75 PC4012-90 PC4015-132

Rotor diameter /mm 750 900 1150

Rotor speed r/mm 800 1200 1500

Rotor speed /min 800-1000 800-1000 550-800

Reed head size /mm 320X930 400X1200 500-1500

Max feed siza/mm <50 <50 <100

Fineness/mm 0-3 0-3 0-8

Processing l/h 10-30 30-60 60-100

Molor Power/kw 55-75 75-90 110-132

The number of hammer 18 32 32

Dimensions LxWxH/mm 2310X1665X1610 2840X2100X2020 3720X2650X2540

[production time]: September 2019 [Location]: South Africa [Material]: Hematite [Yield]: 250t / h [Equipment configuration]: jaw crusher, vibrating screen, vibrating feeder, cone crusher, coarse mill
