Interchangeable Pneumatic Quick Connect Coupling Miniature Iso 6150b Standard - China

price: check with company for price

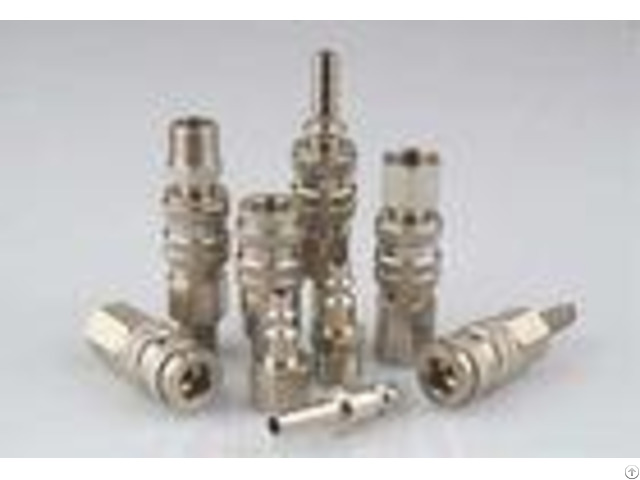

Interchangeable Pneumatic Quick Connect Coupling Miniature Iso 6150b Standard

Products Photos Catalog Interchangeable Photos Catalog

LSQ-23 Rectus 23KA, ISO6150B Standard, Pneumatic Couplings in Brass, Nickle plated Descripton: LSQ-23 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS) Features: alid diameter 5.3mm, ISO6150B standard.

Advantages: large flow valve, single hand operation.

Application: pneumatic tools, automotive, machinery equipment.

Interchangeability: Parker 20Series, Rectus 23KA Series, Hansen 3000 Series, CEJN 310Series Working Pressure: 1.6Mpa.

Working Temperature: -20 to +120 - - - - -

PART NO.

| LS | D | HEX1 | A | T | d | LSQ-23-02SM | 61 | 23.3 | 19 | 13 | ZG 1/4 | 7 | LSQ-23-03SM | 59.5 | 23.3 | 19 | 13 | ZG 3/8 | 11 | LSQ-23-04SM | 57 | 23.3 | 22 | 14 | ZG 1/2 | 14 | - - - - - - - -

PART NO.

| LP | C | HEX2 | A | T | d | LSQ-23-02PM | 43 | 24 | 14 | 13 | ZG 1/4 | 5.2 | LSQ-23-03PM | 43.5 | 24 | 17 | 13 | ZG 3/8 | 5.2 | - - - - - - - -

PART NO.

| LS | D | HEX1 | A | T | d | LSQ-23-02SF | 55 | 23.3 | 19 | 10 | G 1/4 | 14 | LSQ-23-03SF | 54 | 23.3 | 19 | 9 | G 3/8 | 14 | LSQ-23-04SF | 57 | 23.3 | 24 | 12 | G 1/2 | 14 | - - - - - - - -

PART NO.

| LP | C | HEX2 | A | T | d | LSQ-23-02PF | 40 | 24 | 17 | 13 | G 1/4 | 5.2 | LSQ-23-03PF | 40 | 24 | 19 | 13 | G 3/8 | 5.2 | - - - - - - - -

PART NO.

| LS | D | HEX1 | A | T | d | LSQ-23-02SH | 69.5 | 23.3 | 19 | 20 | 7 | 4 | LSQ-23-03SH | 73 | 23.3 | 19 | 25 | 9 | 5 | LSQ-23-04SH | 73 | 23.3 | 19 | 25 | 11 | 7.5 | - - - - - - - -

PART NO.

| LP | C | CP | A | T | d | LSQ-23-01PH | 46.5 | 24 | 15 | 20 | 7 | 5.2 | LSQ-23-02PH | 51.5 | 24 | 15 | 25 | 9 | 5.2 | LSQ-23-03PH | 51.5 | 24 | 15 | 25 | 11 | 5.2 | - - - -


Company Contact:


  • Phone: 86-574-63286838

  • Address: NO. 369, North, Dachang Rd. Kandun Industrial B Zone, Cixi, Zhejiang, China., Ningbo , Zhejiang , China

  • Email: Email


Published date: March 30, 2018

  • Business Description: Zhejiang Songqiao Pneumatic Hydraulic Co., Ltd.Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings.
