Manual Filling Machine For Soap - China

Manual Filling Machine For Soap, Disinfection Water Filler, Double Pump Gear Filling Machine

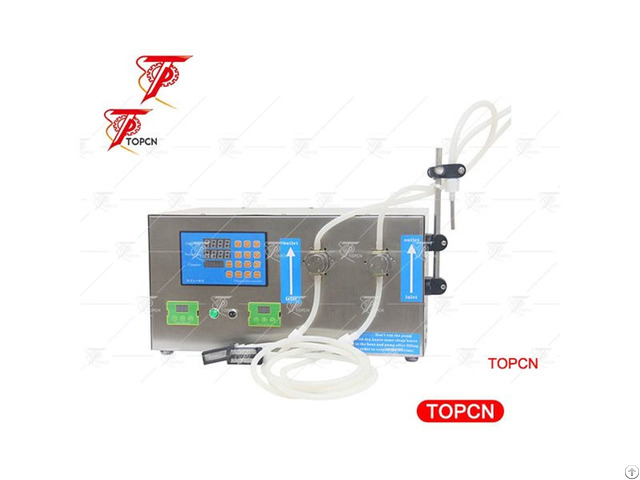

Magnetic Pump acetone filling machine, Disinfection water wine filler automatic ink filling machine with 2 nozzles 2L/min

Almost all the good flow of liquid, particularly suitable for sanitary conditions require very high nutrient solution, biological agents, chemicals and pollution, toxic, corrosive liquid

1 - Using world brand variable voltage and variable frequency, include imported high accuracy many ring potentiometer and lock panel to adjust filling volume more stable and accurate.

filling error 1%

2 - Japan imported magnetic gear made of stainless steel pump, reliable quality and long life.

3 - stainless steel machine body, endurable

4 - Take small place and easy to operate.

5 - Easy to clean

6 - Own manual and auto function, also can equip online using.

7 - Standard type: single head electric filling machine, double pump gear filling machine and four pump type.

8 - Only can fill liquid product without granual.

9 - The filling volume from 5ml to 5000ml adjustable.

and the max filling speed is about 5000ml/min.

Easy to operate and control.

Notice item:

a.

Check valves must be vertical downward, otherwise affect accuracy

b.

filling head must be vertical downward, otherwise affect leakage material.

c.

Line corner should not be too small, or affect flow and accuracy.

d.

Raw material barrel liquid height difference should not be too big, otherwise affect accuracy.

e.

Volatile liquid please use in the circulation of air environment.

f.

Unfavorable use together with high frequency wave machine

g.

Unfavorable use together with big load equipment.

h.

Filling special liquid must inform the factory to meet the different feeding and discharge tube.

Product name TMFM-01S

Filling range 0.5ml-3000ml(adjustable)

Filling speed 20-40 times/min

Filling precision ±0.5%

Filling nozzle size 4mm&6mm(outer diameter, can be customized)

Power 80W

Dimensions 400*360*270mm

Net weight 7.5KG
