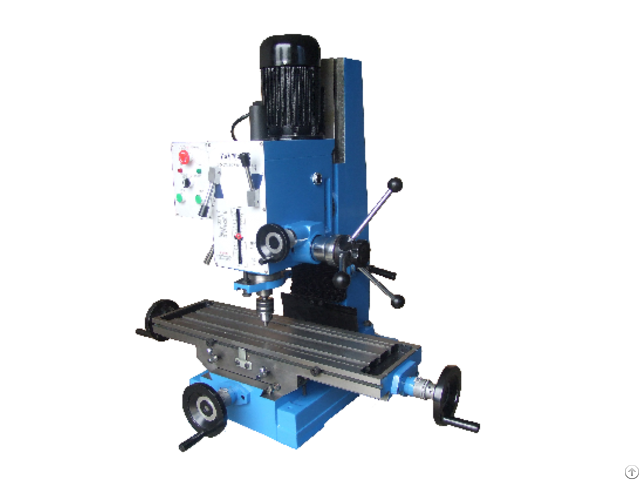

Milling Drilling Machine 7032fg 7040fg 7045fg - China

price: 1420.00 Dollar US$

Milling drilling machine: Gear drive, Square Column

Item ZAY7032FG ZAY7040FG ZAY7045FG

Max.

Drilling capacity 32mm 40mm 45mm

Max.

Face milling capacity 63mm 80mm 80mm

Max.

End milling capacity 20mm 32mm 32mm

Spindle taper MT3 /MT4/ R8 MT3 /MT4/ R8 MT3 /MT4/ R8

Spindle travel 130mm 130mm 130mm

Step of spindle speed 6 6 6

Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m

60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m

Max.

Distance from spindle nose to table 450mm 450mm 450mm

Distance from spindle axis to column 260mm 260mm 260mm

Swivel angleof headstock(perpendicularly ) ± 90°           ± 90°           ±90°

Table size 800×240mm    800×240mm    800×240mm

Forward and backward travel of table 205mm 205mm 205mm

Left and right travel of table 585mm 585mm 585mm

Motor Power 1.5KW(2HP) 1.5KW(2HP) 1.5KW(2HP)

Voltage/frequency As customer's requirement As customer's requirement As customer's requirement

Net weight/gross weight 320kg/370kg 323kg/373kg 325kg/375kg

Packing size 770×880×1160mm   770×880×1160mm    770×880×1160mm

Loading amount 36pcs/20'container 36pcs/20'container 36pcs/20'container


Company Contact:


  • Phone: 86 566 3390679

  • Address: Yongsheng , Chizhou , Anhui , China

  • Email: Email

Published date: August 25, 2016

  • Business Description: We have exporting experience for more than 15 years.

    Our factories are keeping develop and produce innovative high-tech machine tools for metalworking machines and woodworking machines.

    Our product rang is Multi-Purpose Machine, Bench Lathe, Milling & Drilling Machine, Drilling machine, Band saw, Woodworking machine series, VMC and other CNC machines.
