Multi Purpose Machine Mft240v - China

price: 1410.00 Dollar US$

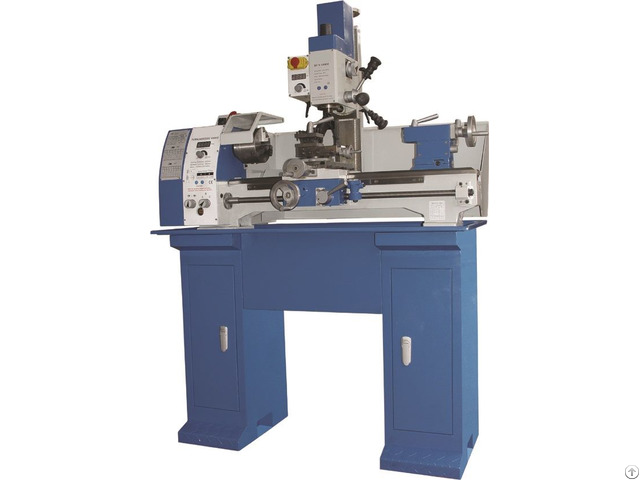

Multi Purpose Machine Mft240v

Products Photos Catalog Multi Machine Mft240v Photos Catalog

Model MFT240V

Lathe

Max.

swing over bed ф250mm

Distance between centers 550mm

Spindle bore 21mm

Taper of spindle bore MT3

Rang of spindle speeds(6 steps) 125-2000rpm

Taper of tailstock quill MT2

Metric threads can be cut 0.4-3.5mm

Inch threads can be cut 8-44TP1

Motor power 0.75KW

Mill & drill



Max.

Drilling Capacity Ф16mm

Max.

milling capacity(Face milling) 52mm

Max.

milling capacity(End milling) 16mm

Spindle taper MT2

Spindle stroke 52mm

T-slot size 10mm

Spindle speed 50-3000rpm

Max.

distance spindle to table 280mm

Spindle lifting travel 175mm

Motor power 600W

Package size(L×W×H) 200×560×580mm

NW/GW 120/145Kg


Company Contact:


  • Phone: 86 566 3390679

  • Address: Yongsheng , Chizhou , Anhui , China

  • Email: Email

Published date: August 25, 2016

  • Business Description: We have exporting experience for more than 15 years.

    Our factories are keeping develop and produce innovative high-tech machine tools for metalworking machines and woodworking machines.

    Our product rang is Multi-Purpose Machine, Bench Lathe, Milling & Drilling Machine, Drilling machine, Band saw, Woodworking machine series, VMC and other CNC machines.
