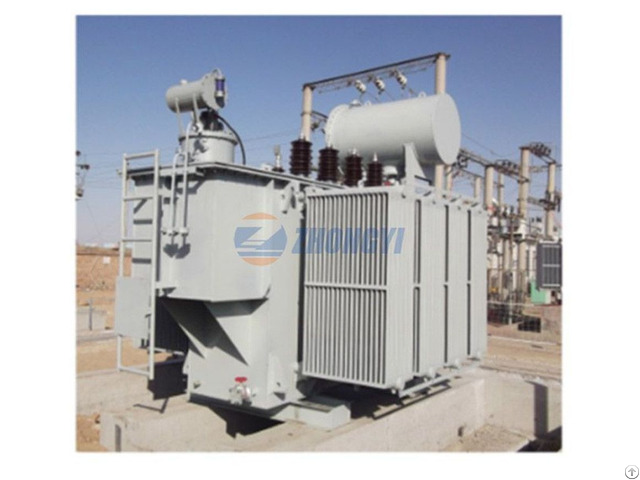

Oil Immersed Transformer

Rectifier transformers are widely used in electrolytic electrochemistry, transmission, traction, electrostatic precipitators, DC transmission and other systems which need direct current power supply.

Our rectifier transformer absorbed the excellent experiences of same industry at home and abroad.

Raw materials such as high magnetic silicon steel sheet and high quality oxygen free copper wire are used.

We adopt production technology such as advanced integral assembly per phase for windings, the core are laminated by five step-lap method to reduce iron loss and noise, crimped winding connections, precision machining for tank surface and so on, which make technologic performance at the leading level in domestic.

We can design and manufacture various types of products according to users requirement.

Model and Meaning

Technical Parameter of Rectifier Transformer

Model No.

kVARated capacity Rated Voltage Connection Group Symbol Weight|kg KVgrid side VValve side Weight for Active parts Oil Weight Total Weight

ZSS-400/10 400 10 430 Dyn11 1015 380 1780

ZSS-500/6 500 6.3 400 Dyn11 1420 580 2800

ZSS-630/6 630 6.3 400 Dyn11 1550 620 3040

ZSS-650/3 650 3 3150 Dyn11 1255 540 2460

ZSS-800/6 800 6 400 Dyn11 1576 705 3045

ZSS-1000/6 1000 6 440 Dyn11 1837 838 3580

ZSS-1000/10 1000 10 420 Dyn11 2112 897 3860

ZSS-1250/10 1250 10 440 Dyn11 2205 1090 4410
