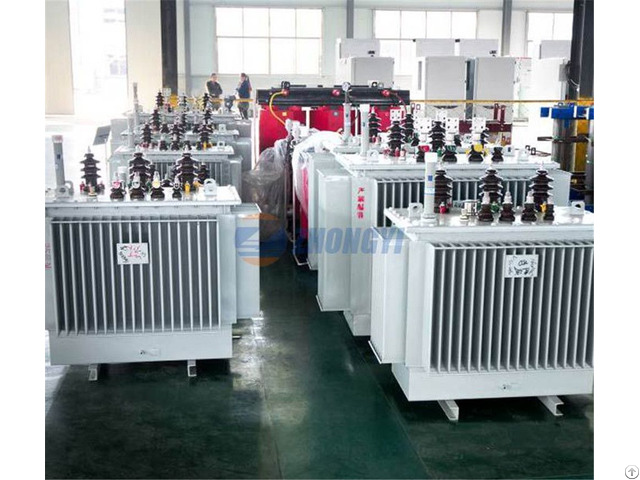

S11 Series 6kv 35kv Distribution Transformer - China

S11 Series 35kV 630kVA-31500kVA Three-phase Dual Winding Power Transformer With Off Circuit Tap Changer

Model Voltage Combination Connection Group Symbol No-load Loss W Load Loss RW No-load Current% Short circuit impedance (%) Length Lmm Width Wmm Height Hmm Gauge Horizontal*Vertical mm Active parts WeightKg Oil WeightKg Total WeightKg High Voltage (kV) Tapping Range of High Voltage % Low Voltage (kV) 630 35 2.5%5% 3.156.310.5 Yd11 830 7860 0.65 6.5 2400 1700 2210 820*820 2210 900 3250

800 980 9400 0.65 2500 1850 2390 820*820 2350 1030 3500

1000 1150 1150 0.65 2700 1950 2510 820*820 2490 1180 3860

1250 1400 1390 0.55 2900 2050 2630 820*820 2600 1350 4350

1600 1690 1660 0.45 3050 2130 2750 820*820 2810 1580 4855

2000 2170 1830 0.45 3105 2195 2805 1070*1070 2800 1800 5300

2500 2560 1960 0.45 3150 2535 2980 1070*1070 3525 2060 7665

3150 35-38.5 2.5%5% 3.156.310.5 3040 2300 0.45 7.0 3920 2725 2840 1070*1070 3995 2205 8565

4000 3610 2730 0.45 3310 2915 3070 1070*1070 4825 2560 10115

5000 4320 3130 0.45 3480 3020 3145 1070*1070 5700 2635 11305

6300 5240 3500 0.45 8.0 3590 2905 3210 1475*1475 7120 3240 13510

8000 35-38.5 2.5% 3.153.36.36.610.5 YNd11 7200 3840 0.35 4070 3050 3595 1475*1475 8875 3840 16690

10000 8700 4530 0.35 4106 2795 3655 2000*1475 10305 3600 17690

12500 1000 5380 0.30 4570 3010 3840 1475*1475 12830 4310 20990

16000 1210 6580 0.30 5235 3295 4615 2000*1475 16010 6650 27660

20000 1440 7950 0.30 5360 3415 4660 2000*1475 18820 7600 32170

25000 1700 9400 0.25 10.0 5830 3810 4860 2000*1475 22360 9800 42600

31500 2020 112000 0.25 6290 4290 5260 2000*1475 25110 12010 49960
