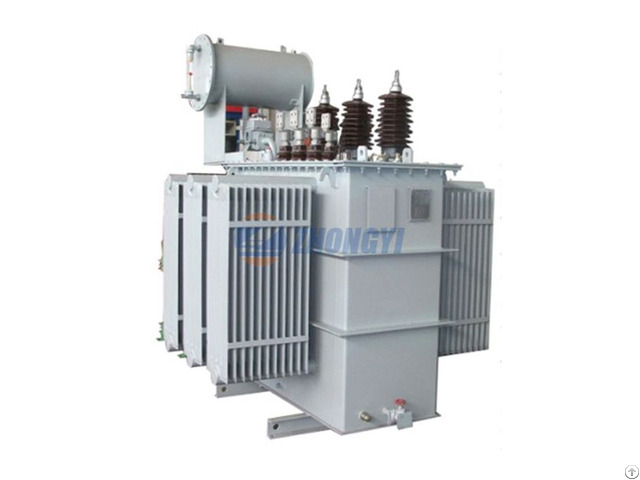

S11 Series 6kv 35kv High Voltage Step Up Transformer - China

Model Voltage Combination Connection Group Symbol No-load Loss W Load Loss RW No-load Current% Short circuit impedance (%) Length Lmm Width Wmm Height Hmm Gauge Horizontal*Vertical mm Active parts WeightKg Oil WeightKg Total WeightKg High Voltage (kV) Tapping Range of High Voltage % Low Voltage (kV) 630 35 2.5%5% 3.156.310.5 Yd11 830 7860 0.65 6.5 2400 1700 2210 820*820 2210 900 3250

800 980 9400 0.65 2500 1850 2390 820*820 2350 1030 3500

1000 1150 1150 0.65 2700 1950 2510 820*820 2490 1180 3860

1250 1400 1390 0.55 2900 2050 2630 820*820 2600 1350 4350

1600 1690 1660 0.45 3050 2130 2750 820*820 2810 1580 4855

2000 2170 1830 0.45 3105 2195 2805 1070*1070 2800 1800 5300

2500 2560 1960 0.45 3150 2535 2980 1070*1070 3525 2060 7665

3150 35-38.5 2.5%5% 3.156.310.5 3040 2300 0.45 7.0 3920 2725 2840 1070*1070 3995 2205 8565

4000 3610 2730 0.45 3310 2915 3070 1070*1070 4825 2560 10115

5000 4320 3130 0.45 3480 3020 3145 1070*1070 5700 2635 11305

6300 5240 3500 0.45 8.0 3590 2905 3210 1475*1475 7120 3240 13510

8000 35-38.5 2.5% 3.153.36.36.610.5 YNd11 7200 3840 0.35 4070 3050 3595 1475*1475 8875 3840 16690

10000 8700 4530 0.35 4106 2795 3655 2000*1475 10305 3600 17690

12500 1000 5380 0.30 4570 3010 3840 1475*1475 12830 4310 20990

16000 1210 6580 0.30 5235 3295 4615 2000*1475 16010 6650 27660

20000 1440 7950 0.30 5360 3415 4660 2000*1475 18820 7600 32170

25000 1700 9400 0.25 10.0 5830 3810 4860 2000*1475 22360 9800 42600

31500 2020 112000 0.25 6290 4290 5260 2000*1475 25110 12010 49960

Note: 1 - For the transformer of low voltage 10.5kV, the connection group symbol is applicable to Dyn11.

Note: 2 - For the transformer of rated capacity 3150kVA or above, the -5% tapping position is for maximum current tap.

Note: 3 - When the annual average load rate for the transformer is between 35% to 45%, the loss value in the table can obtain the highest operational efficiency.

We are pleased to deliver Transformer, Distribution Transformer, Power Transformer, Oil Transformer, Dry Type Transformer.

Safe payment and on time deliver time will give you.

If you want to know more about the product, please visit our website.

Company Contact:

• Posted By: Baoding Zhongyi Electrical Material Manufacturing Co.,Ltd.

• Phone: +863125926018

• Address: Room A1109, Oriental Pearl Business Center, Yulan Street, Lianchi District, Baoding, Hebei, China, Baoding , Hebei , China

• Email:

• Website: https://www.firsttransformer.com

• Business Description: Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation.

  Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters.

  The registered capital of the company is RMB 81, 000, 000.

  The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.

  The hoisting, tooling and testing equipments are complete.

  Our company has passed the ISO9001-2015 international standard quality management system certification.

  All performance indicators of the products have reached the relevant national standards and international standards.

  Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

  Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", well always treat our customers warmly and provide qualified products and service to your satisfaction.

  The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .
