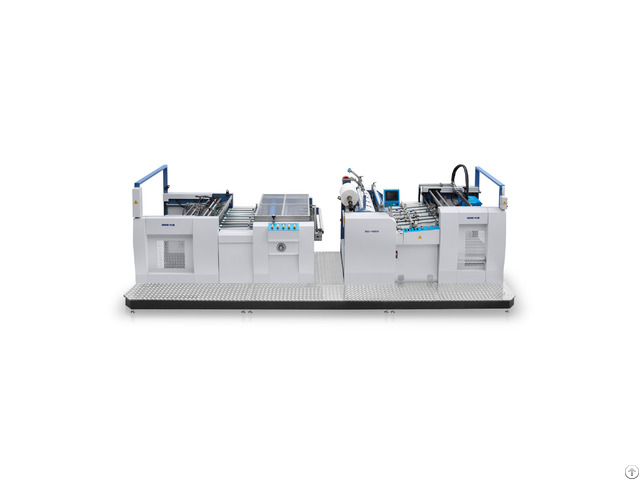

Sc 1050 Full Automatic Thermal Film Laminator - China
price: contact company for price
Max.
lamination sheet size 1050*820mm, Max.
speed up to 100m/min.
Substrate range 105-500gsm.
Servo controlled non-stop sheet feeder with pre-stacker device for high volume production without stop.
Equipped with non-paper protector and paper-break protector.
Side lay cam mechanism guarantees precise sheet alignment.
Hydraulic pressuring system provides stable high pressure to guarantee good laminating quality.
Film is mounted on a quick-change air shaft.
Trim slitter and perforating mechanism fitted as standard.
Electromagnetic heating system shorten heating time to 90s, and control temperature accuracy ±1℃.
The traditional Pneumatic integral bump roller separator runs in-line for BOPP film laminated sheet.
Adjustable anti-curl device equipped before separator.
Stacker collects the sheets in order by pneumatic jogging.
Chain cutting system for PET film can be optional.
Inline embossing station can be optional.
Company Contact:
- Posted By: WENZHOU HEASN IMPORT & EXPORT CO., LTD.
- Phone: 86-577-88689918
- Address: Room 3003, Zhixin Center, No. 1067 Jinxiu Road, Wenzhou City, Wenzhou , Zhejiang , China
- Email:
Published date: June 24, 2019
- Business Description: HEASN is specialized in exporting premium Chinese machinery since the year 2008 - Untill now, HEASN has developed a wide range of machines which complement each other to provide the systematic solutions to package printers especially for the folding cartons.
Our main products are divided into applications as below:
Printing surface finishing machines for printed sheets
which including the hot-foil stamping machine, film laminating machine and varnish coating machine (dispersion and UV).
Folding cartons converting machines
which including die cutting machine, folder gluer, litho laminating machines, window patcher, single facer and flat-bed cutting plotter.
