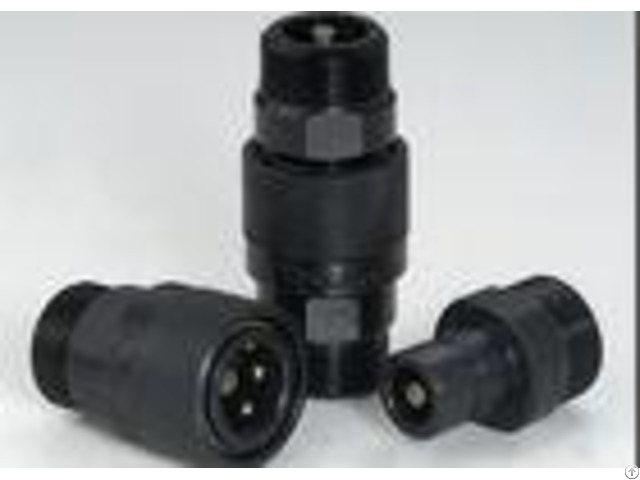

Single Handed Operation Hydraulic Connectors Fittings Black Q Zb275 77 Metric Thread - China
price: check with company for price
Q/ZB275-77 Chinese Type Hydraulic Couplings in Carbon Steel, Black Treatment Descripton: Q/ZB275-77 close type hydraulic quick coupling(steel) Applications: The Q/ZB275-77 Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications: - - - - Body Size(in) | M16*1.5 | M22*1.5 | M27*1.5 | M30*1.5 | M36*2 | M42*2 | M52*2 | M60*2 | M68*2 | Rated Pressure(PSI) | 5000 | 5000 | 5000 | 5000 | 4000 | 4000 | 3000 | 2000 | 2000 | Temperature Range(std seals) | -20 to +120 | Temperature Range(std seals) | NBR | - - - - Socket - - - - PARTNO.
| LS | D | HEX1 | A | T | Q/ZB275-77 06SM | 44 | 28 | 19 | 13 | M16*1.5 | Q/ZB275-77 08SM | 46 | 31 | 22 | 13 | M22*1.5 | Q/ZB275-77 10SM | 52 | 35 | 27 | 13 | M27*1.5 | Q/ZB275-77 15SM | 56 | 39.6 | 30 | 16 | M30*1.5 | Q/ZB275-77 20SM | 65 | 48 | 36 | 16.5 | M36*2 | Q/ZB275-77 25SM | 78 | 55 | 46 | 20 | M42*2 | Q/ZB275-77 32SM | 84 | 64.5 | 55 | 22 | M52*2 | Q/ZB275-77 40SM | 93 | 78 | 65 | 26 | M60*2 | Q/ZB275-77 50SM | 99 | 82 | 70 | 30 | M68*2 | - - - - Plug - - - - PARTNO.
| LP | C | HEX2 | A | T | Q/ZB275-77 06PM | 40 | 18 | 19 | 13 | M16*1.5 | Q/ZB275-77 08PM | 41 | 19 | 22 | 13 | M22*1.5 | Q/ZB275-77 10PM | 46 | 22 | 27 | 13 | M27*1.5 | Q/ZB275-77 15PM | 52.5 | 24 | 30 | 16 | M30*1.5 | Q/ZB275-77 20PM | 58.5 | 29 | 36 | 16.5 | M36*2 | Q/ZB275-77 25PM | 65.5 | 31 | 46 | 20 | M42*2 | Q/ZB275-77 32PM | 79 | 36 | 55 | 22 | M52*2 | Q/ZB275-77 40PM | 89.5 | 39.5 | 65 | 26 | M60*2 | Q/ZB275-77 50PM | 96.5 | 41 | 70 | 30 | M68*2 | - - - -
Company Contact:
- Phone: 86-574-63286838
- Address: NO. 369, North, Dachang Rd. Kandun Industrial B Zone, Cixi, Zhejiang, China., Ningbo , Zhejiang , China
- Email:
Published date: March 30, 2018
- Business Description: Zhejiang Songqiao Pneumatic Hydraulic Co., Ltd.Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings.
