Single Shut Off Pneumatic Quick Connect Coupling Lsq 19 Rectus 19ka In Brass - China

price: check with company for price

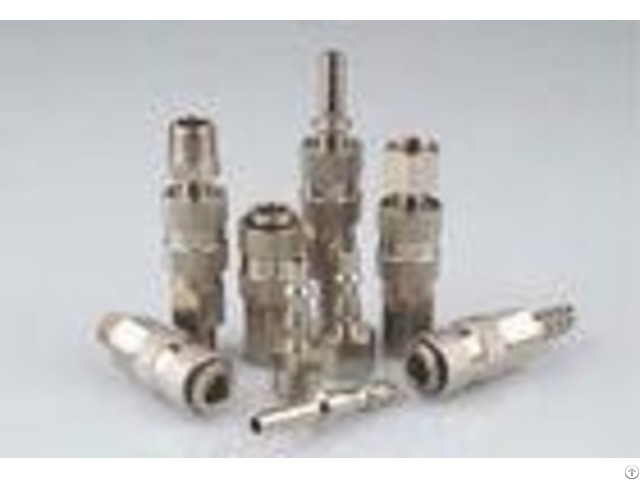

Single Shut Off Pneumatic Quick Connect Coupling Lsq 19 Rectus 19ka In Brass

Products Photos Catalog Shut Pneumatic Quick Photos Catalog

LSQ-19 Rectus 19KA, Pneumatic Couplings in Brass, Nickle plated Descripton: LSQ-19 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS) Features: Single operation, single shut-off.

Advantages: Single operation, High flow valve, Plug design optimised through greater insert depth.

Application: pneumatic tools, measure and control equipments, and compressed air.

Interchangeability: PCL 60 series, Rectus 19KA series.

Working Pressure: 1.0 Mpa.

Working Temperature: -20 to +120 - - - - - PART NO.

| LS | D | HEX1 | A | T | d | LSQ-19-02SM | 64.5 | 23.3 | 19 | 13 | ZG1/4 | 7 | LSQ-19-03SM | 63 | 23.3 | 19 | 13 | ZG3/8 | 11 | LSQ-19-04SM | 60.5 | 23.3 | 22 | 14 | ZG1/3 | 14 | - - - - - - - - PART NO.

| LP | D | HEX1 | A | T | d | LSQ-19-02PM | 50.3 | 31.5 | 14 | 13 | ZG1/4 | 4.8 | LSQ-19-03PM | 51 | 31.5 | 17 | 13 | ZG3/8 | 4.8 | - - - - - - - - PART NO.

| LS | D | HEX1 | A | T | d | LSQ-19-02SF | 58.5 | 23.3 | 19 | 10 | G1/4 | 14 | LSQ-19-03SF | 57.5 | 23.3 | 19 | 9 | G3/8 | 14 | LSQ-19-04SF | 60.5 | 23.3 | 24 | 12 | G1/2 | 14 | - - - - - - - - PART NO.

| LP | D | HEX1 | A | T | d | LSQ-19-02PF | 47.5 | 31.5 | 17 | 13 | G1/4 | 4.8 | LSQ-19-03PF | 47.5 | 31.5 | 19 | 13 | G3/8 | 4.8 | - - - - - - - - PART NO.

| LS | D | HEX1 | A | T | d | LSQ-19-01SH | 73 | 23.3 | 19 | 20 | 7 | 4 | LSQ-19-02SH | 76.5 | 23.3 | 19 | 25 | 9 | 5 | LSQ-19-03SH | 76.5 | 23.3 | 19 | 25 | 11 | 7.5 | - - - - - - - - PART NO.

| LP | D | HEX1 | A | T | d | LSQ-19-01PH | 54 | 31.5 | 15 | 20 | 7 | 4.8 | LSQ-19-02PH | 59 | 31.5 | 15 | 25 | 9 | 4.8 | LSQ-19-03PH | 59 | 31.5 | 15 | 25 | 11 | 4.8 | - - - -


Company Contact:


  • Phone: 86-574-63286838

  • Address: NO. 369, North, Dachang Rd. Kandun Industrial B Zone, Cixi, Zhejiang, China., Ningbo , Zhejiang , China

  • Email: Email


Published date: March 30, 2018

  • Business Description: Zhejiang Songqiao Pneumatic Hydraulic Co., Ltd.Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings.
