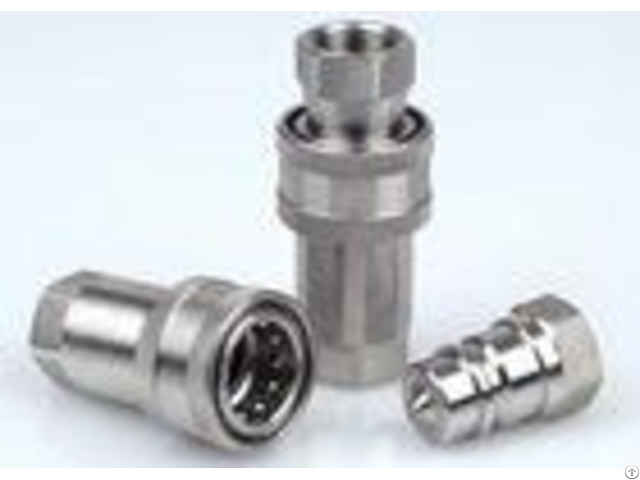

Ss 316 Stainless Steel Quick Release Couplings 1 Inch Small Size Nptf Thread - China
price: check with company for price
LSQ-S1SS Hydraulic Couplings in ISO A, Stainless Steel SS316 Descripton: LSQ-S1-SS CLOSE TYPE HYDRAULIC QUICK COUPLING (stainless steel 316) Applications: The LSQ-S1-SS Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.
Specifications: - - - - Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | Rated Pressure (PSI) | 2000 | 2000 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 220 | 240 | Temperature Range (std seals) | -20to to +180 | Standard seal material | VITON | - - - - LSQ-S1-SS Series couplings feature: 1 - Poppet valves available to prevent uncoupled leakage.
2 - Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3 - Dependable ball-locking mechanism holds the mating halves together.
4 - Socket and plug are precision machined from solid bar stock.
5 - LSQ-S1-SS series conforms to the standard of ISO 7241-A.
6 - Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Performance: Test Fluid: Oil-200SUS.
1GPM=3.7 8L/Min, 1PSID=0.0069MPa.
LSQ-S1-SS Series(1/4", 3/8", 1/2", 3/4", 1") LSQ-S1-SS Series(11/4", 11/2", 2") Socket - - - - ISO | PARTNO.
| LS | D | HEX1 | A | T | 6.3 | LSQ-S1-SS-02SF | 50 | 26 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S1-SS-03SF | 56 | 31.5 | 22 | 14 | G3/8 NPT3/8 | 12.5 | LSQ-S1-SS-04SF | 66 | 38.5 | 27 | 16 | G1/2 NPT1/2 | 20 | LSQ-S1-SS-06SF | 80 | 48 | 34 | 18 | G3/4 NPT3/4 | 25 | LSQ-S1-SS-08SF | 94 | 56 | 41 | 21 | G1 NPT1 | 31.5 | LSQ-S1-SS-10SF | 117 | 69.5 | 50 | 25 | G1-1/4 NPT1-1/4 | 40 | LSQ-S1-SS-12SF | 133 | 84 | 60 | 27 | G1-1/2 NPT1-1/2 | 50 | LSQ-S1-SS-16SF | 165 | 99 | 75 | 26 | G2 NPT2 | - - - - Plug - - - - ISO | PARTNO.
| LP | d | C | HEX2 | A | T | 6.3 | LSQ-S1-SS-02PF | 35.5 | 11.8 | 15 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S1-SS-03PF | 36.5 | 17.3 | 21.4 | 22 | 14 | G3/8 NPT3/8 | 12.5 | LSQ-S1-SS-04PF | 43.5 | 20.5 | 27 | 27 | 16 | G1/2 NPT1/2 | 20 | LSQ-S1-SS-06PF | 57 | 29 | 28 | 35 | 18 | G3/4 NPT3/4 | 25 | LSQ-S1-SS-08PF | 59.5 | 34.3 | 36 | 41 | 21 | G1 NPT1 | 31.5 | LSQ-S1-SS-10PF | 75 | 45 | 46 | 50 | 25 | G1-1/4 NPT1-1/4 | 40 | LSQ-S1-SS-12PF | 83.5 | 55 | 52 | 60 | 27 | G1-1/2 NPT1-1/2 | 50 | LSQ-S1-SS-16PF | 105 | 65 | 64 | 75 | 26 | G2 NPT2 | - - - - Coupling Fitting - - - - ISO | PARTNO.
| L | D | HEX1 | HEX2 | T | 6.3 | LSQ-S1-SS-02 | 71 | 26 | 19 | 19 | G1/4 NPT1/4 | 10 | LSQ-S1-SS-03 | 75 | 31.5 | 22 | 22 | G3/8 NPT3/8 | 12.5 | LSQ-S1-SS-04 | 88 | 38.5 | 27 | 27 | G1/2 NPT1/2 | 20 | LSQ-S1-SS-06 | 110 | 48 | 34 | 35 | G3/4 NPT3/4 | 25 | LSQ-S1-SS-08 | 119.5 | 56 | 41 | 41 | G1 NPT1 | 31.5 | LSQ-S1-SS-10 | 150 | 69.5 | 50 | 50 | G1-1/4 NPT1-1/4 | 40 | LSQ-S1-SS-12 | 167.5 | 84 | 60 | 60 | G1-1/2 NPT1-1/2 | 50 | LSQ-S1-SS-16 | 210.5 | 99 | 75 | 75 | G2 NPT2 | - - - -
Company Contact:
- Phone: 86-574-63286838
- Address: NO. 369, North, Dachang Rd. Kandun Industrial B Zone, Cixi, Zhejiang, China., Ningbo , Zhejiang , China
- Email:
Published date: March 30, 2018
- Business Description: Zhejiang Songqiao Pneumatic Hydraulic Co., Ltd.Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings.
