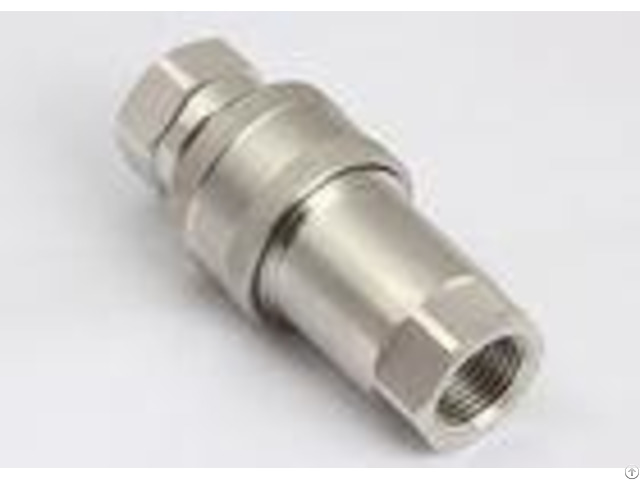

Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material Ss316 - China

LSQ-S2SS Hydraulic Quick Couplings in ISO B, Stainless Steel SS316 Descripton: LSQ-S2-SS close type hydraulic quick coupling(stainless steel 316) Specifications: - - - - Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | Rated Pressure(PSI) | 2000 | 2000 | 1500 | 1500 | 1000 | 2000 | Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | Temperature Range(std seals) -20 to +180 | Stander seal material VITON | - - - - LSQ-S2-SS Series couplings feature: 1 - Poppet valves available to prevent uncoupled leakage.

2 - Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

3 - Dependable ball-locking mechanism holds the mating halves together.

4 - Socket and plug are precision machined from solid bar stock.

5 - LSQ-S2-SS series conforms to the standard of ISO 7241-B.

6 - Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series Performance: Test Fluid: Oil-200SUS.

1GPM=3.7 8L/Min, 1PSID=0.0069MPa.

LSQ-S2-SS Series(1/4", 3/8", 1/2", 3/4", 1") Socket - - - - ISO | PARTNO.

| LS | D | HEX1 | A | T | 5 | LSQ-S2-SS-01SF | 50 | 24 | 17 | 10 | G1/8 NPT1/8 | 6.3 | LSQ-S2-SS-02SF | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S2-SS-03SF | 65 | 35 | 24 | 13 | G3/8 NPT3/8 | 12.5 | LSQ-S2-SS-04SF | 73.4 | 42 | 30 | 17 | G1/2 NPT1/2 | 20 | LSQ-S2-SS-06SF | 92 | 54 | 36 | 22 | G3/4 NPT3/4 | 25 | LSQ-S2-SS-08SF | 103 | 65 | 41 | 23 | G1 NPT1 | - - - - Plug - - - - ISO | PARTNO.

| LP | d | C | HEX2 | A | T | 5 | LSQ-S2-SS-01PF | 31 | 10.8 | 19 | 14 | 10 | G1/8 NPT1/8 | 6.3 | LSQ-S2-SS-02PF | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S2-SS-03PF | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 | 12.5 | LSQ-S2-SS-04PF | 46.5 | 23.5 | 28 | 27 | 17 | G1/2 NPT1/2 | 20 | LSQ-S2-SS-06PF | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 | 25 | LSQ-S2-SS-08PF | 63 | 37.8 | 35.5 | 41 | 23 | G1" NPT1" | - - - - Coupled - - - - ISO | PARTNO.

| L | D | HEX1 | HEX2 | T | 5 | LSQ-S2-SS-01 | 62.5 | 24 | 17 | 14 | G1/8 NPT1/8 | 6.3 | LSQ-S2-SS-02 | 72.2 | 28.5 | 19 | 19 | G1/4 NPT1/4 | 10 | LSQ-S2-SS-03 | 80.5 | 35 | 24 | 24 | G3/8 NPT3/8 | 12.5 | LSQ-S2-SS-04 | 91.5 | 42 | 30 | 27 | G1/2 NPT1/2 | 20 | LSQ-S2-SS-06 | 112.5 | 54 | 36 | 36 | G3/4 NPT3/4 | 25 | LSQ-S2-SS-08 | 126.5 | 65 | 41 | 41 | G1 NPT1 | - - - -
