Stainless Steel Hydraulic Quick Connect Couplings Female Thread Kzf Iso7241 B - China

KZF, ISO7241-B Hydraulic Couplings in FeMale Thread, Stainless Steel SS304 Descripton:

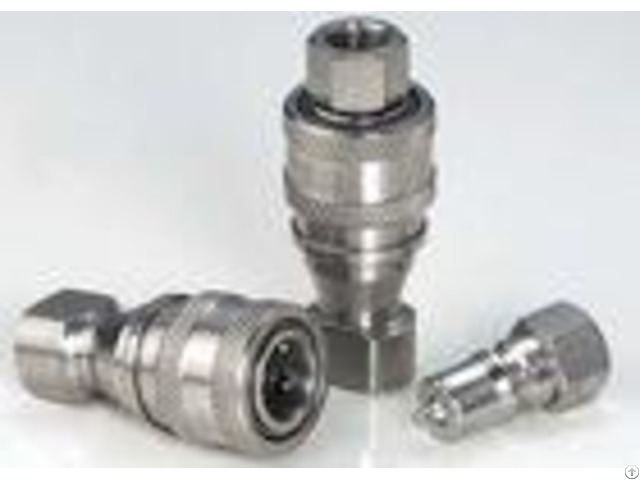

KZF Close Type Hydraulic Quick Coupling (stainless steel 304)

KZF couplings, are used across the spectrum of hydraulic applications.

These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

Primarily used with hydraulic fluid.

KZF couplings are also used with chemicals, water, steam, and some gases.

Specifications - - - -

Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1(1/4) | 1(1/2) | 2 | Rated Pressure(PSI) | 2000 | 2000 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 | Temperature Range(std seals) | -20 to +120 | Standard seal material | VITON | - - - - KZF Series couplings feature:

1 - Poppet valves available to prevent uncoupled leakage.

2 - Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

3 - Dependable ball-locking mechanism holds the mating halves together.

4 - Socket and plug are precision machined from solid bar stock.

5 - KZF series conforms to the standard of ISO 7241-B

6 - Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

KZF (1/8", 1/4", 3/8", 1/2") KZF (3/4", 1", 11/4", 12/2", 2") Socket - - - -

ISO | PARTNO.

| LS | D | HEX1 | A | T | 5 | KZF-01SF | 48 | 24 | 14 | 8 | G1/8 | 6.3 | KZF-02SF | 58 | 27 | 19 | 12.5 | ZG1/4 | 10 | KZF-03SF | 65 | 35 | 22 | 13 | ZG3/8 | 12.5 | KZF-04SF | 72.5 | 45 | 29 | 14 | ZG1/2 | 20 | KZF-06SF | 88 | 54 | 36 | 17 | ZG3/4 | 25 | KZF-08SF | 102 | 64.5 | 41 | 23 | ZG1 | 31.5 | KZF-10SF | 115 | 69 | 54 | 27 | ZG1-1/4 | 40 | KZF-12SF | 124 | 79 | 60 | 27 | ZG1-1/2 | 50 | KZF-16SF | 132 | 102 | 77 | 30 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - - Plug - - - -

ISO | PARTNO.

| LP | d | C | HEX2 | A | T | 5 | KZF-01PF | 29 | 10.8 | 19 | 14 | 8 | G1/8 | 6.3 | KZF-02PF | 36 | 14.2 | 22.5 | 17 | 12.5 | ZG1/4 | 10 | KZF-03PF | 40 | 19 | 25 | 22 | 13 | ZG3/8 | 12.5 | KZF-04PF | 44 | 23.5 | 28 | 27 | 14 | ZG1/2 | 20 | KZF-06PF | 52 | 31.4 | 36 | 36 | 17 | ZG3/4 | 25 | KZF-08PF | 62 | 37.8 | 40 | 41 | 23 | ZG1 | 31.5 | KZF-10PF | 70 | 45 | 45 | 52 | 27 | ZG1-1/4 | 40 | KZF-12PF | 75 | 50 | 49 | 60 | 27 | ZG1-1/2 | 50 | KZF-16PF | 80 | 70 | 52 | 77 | 30 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - - Coupling Fitting - - - -

ISO | PART NO.

| L | D | HEX1 | HEX2 | T | 5 | KZF-01 | 58.5 | 24 | 14 | 14 | G1/8 | 6.3 | KZF-02 | 72.5 | 28 | 19 | 17 | ZG1/4 | 10 | KZF-03 | 80.5 | 35 | 22 | 22 | ZG3/8 | 12.5 | KZF-04 | 89 | 45 | 29 | 27 | ZG1/2 | 20 | KZF-06 | 105 | 54 | 36 | 36 | ZG3/4 | 25 | KZF-08 | 124.5 | 64.5 | 41 | 41 | ZG1 | 31.5 | KZF-10 | 140.5 | 69 | 54 | 52 | ZG1-1/4 | 40 | KZF-12 | 150.5 | 79 | 60 | 60 | ZG1-1/2 | 50 | KZF-16 | 160.5 | 102 | 77 | 77 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - -
