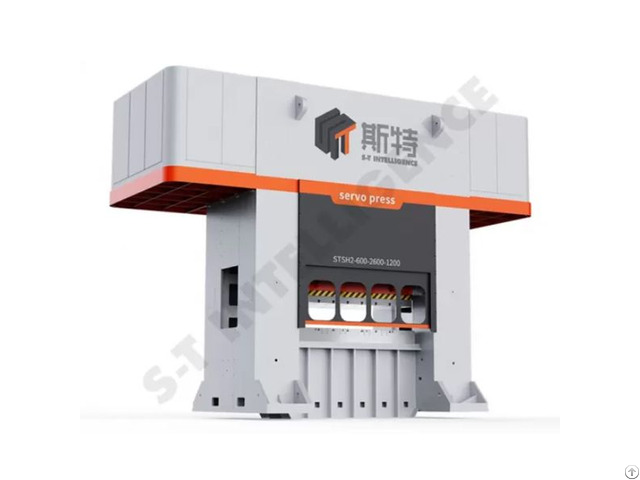

Stsh2 Type Servo Straight Side Double Points High Precision Press - China

Main motor is Low Speed High Torque Servo Motor

Brand: S-T Intelligence

Servo Drive & Control System.

Slide pneumatic-hydraulic overload protection: slide stops automatically when the load is 10% more than the nominal capacity.

Overload reset time (after the slide stops at TDC) <180seconds.

Manual blown-off can be carried out when the mode switch is at "test" position.

Eight-points square guides for slide.

Super-long guiding.

Perpendicularity between the slide movement and bolster top has been kept.

Electrical die height adjustment device.

Adjusted only at normal counterbalance pressure, hydraulic protection and lubrication.

Automatic stop at upper and lower adjustment limit.

Manual adjustment by functional keys / hand wheel.

Automatic adjustment by preset value.

Counterbalance Pressure to be adjusted manually / automatically, interlocking with adjustment motor of slide and the control of servo motor.

The frame is of welded structure with stress-relief.
