Vibrating Screen - China

Vibrating screen Vibrating screen manufacturer Industrial Beneficiation Equipment factory

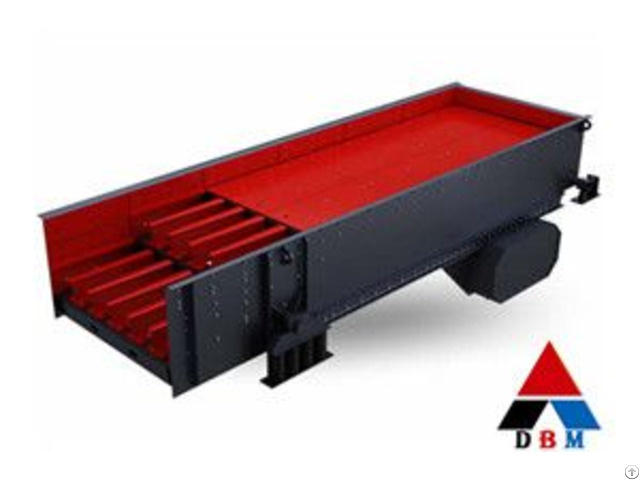

Vibrating Feeder is a kind of linear direction feeding equipment.

It features smooth vibrating, reliable operation, long service life and being suitable for feeding.

They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.

It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

Features and Benefits of Vibrating screen for mining 1 - Stable and long span life.

2 - easy to adjust.

3 - Reliable operation.

4 - Easy maintenance.

5 - No pollution.

Operating principle of vibrating feeder: Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor.

The vibrator is made of two fixed eccentric shafts whose gears are jogged.

When installation, the two gears must be jogged according to the sign.

Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate.

Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoid the further crushing, so screening purpose can be reached.

Applications： vibrating feeder for mining Detail:

Model Max Feeding size(mm) Capacity(t/h) Eccentric Shaft Rotating Speed (r/min) Electric Motor Power(kw) Trough Size(mm) Overall Dimension(LXWXH)(mm)

ZSW-380X96 500 90-200 500-714 11 3800X960 3882X2224X2121

ZSW-420X110 580 150-350 500-800 15 4200X1100 4250X2500X1365

ZSW-490X110 580 180-380 500-800 15 4900X1100 4957X2500X1365

ZSW-490X130 750 250-450 500-800 22 4900X1300 4957X2580X2083

ZSW-600X130 750 450-800 500-800 30 6000X1300 6082X2580X2083

ZSW-600X150 800 600-1000 500-800 30 6000X1500 6082X2660X2400 [production time]: September 2019 [Location]: South Africa [Materials]: Granite [Yield]: 250t / h [Equipment configuration]: jaw crusher, vibrating screen, vibrating feeder, cone crusher, sand making machine DBM construction sand making equipment widely applied in mining, road building, bridge building and so on.
