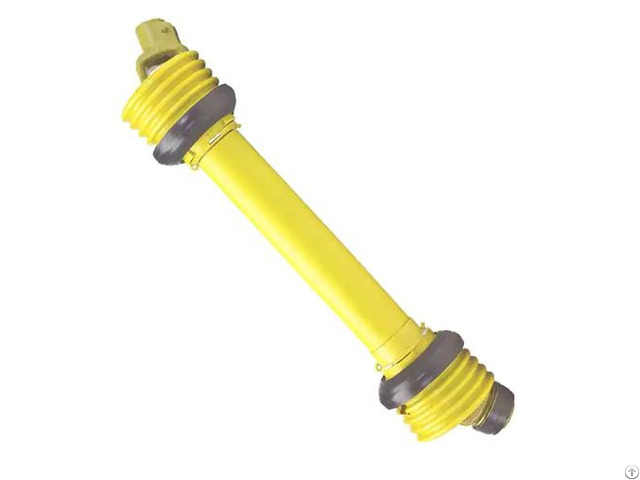

W 2400 Series Pto Shaft Replacement Of Walterscheid - China

A PTO shaft is a device that transfers power of your tractor into attachments powered by a PTO driven attachment.

This allows the tractor to provide power to a variety of tractor-powered equipment, including flail mowers and wood chippers excavators, rotary tillers and much more.

Length 1010mm from Cross Joint to Cross Joint

End 1 1 3/4" 6-Spline Yoke

End 2 1 3/4" 6 - Spline F5 Freewheel

Tubing: 1b / 2a

Guard: SD25

Specifications of the W 2400 Series PTO Shaft

150-250cm Cross to the Cross Length

The length range is 165 to 260cm overall.

W2400 Series.

32mm x 76mm x 86mm (approx.

) Triangle Profile Triangular Profile Drive Tube.

39KW-53HP @ 540 rpm, 61KW-83HP @ 1000 rpm.

Standard Shaft Includes:

1 3/8" 6 Splines release Yokes on One End.

NO End Yoke at the Other Side.

Security Guard.

I'll take an un-standard yoke.

Weight W kg 15.1

Inner diameter, d mm 32

Outside diameter D mm 170

The number of splines, F 21

Length L mm 610

Inner diameter, d1 mm 35

Slots, number of slots Quantity of slots, F 21

Length 2 Length 2 mm 860

W 2400 Series PTO Shaft Applications

Parts for spares to support the combined drives comprising Massey Ferguson, Claas, and Gleaner.

The W2400 series PTO shafts are designed to work with these machines used in agriculture:

Combine harvester Challenger: 660 670

Combine harvester Claas: LEXION

Combine harvester Gleaner: C62 R40-R75

Combine harvester Massey Ferguson: 8780 9690 9790

Tractor Massey Ferguson: 8680 Make sure that the torque of the drive is transferred to the elements that drive the machine for replacement of damaged or worn out components during restoration and repair work.

A product that consists from a beam central to the beam as well as two forks that pivotally connect to each end of the beam.

This connects the shafts to allow the transmission of torque between shafts having significant shaft rotational shifts (up up to 40-40 deg) which change with their rotation.

PTO Shaft Parts and Components

The HZPT's PTO shafts and parts ensure that your equipment is running.

We are a top manufacturer of PTO shafts, we have various standard, metric, and constant velocity drivetrains and PTO shaft components as well as assemblies (implement PTO shaft yokes, PTO shaft clutch as well as PTO shaft tubing).

HZPT has a wide selection of tractor PTO shaft drivetrains.

We provide drop-in drivetrains and other components for replacement which offer an easy option for customizing or fixing your application.

Tractor Yoke The Cross & Bearing Kit Shaft Shaft Weld Yoke

Slip Sleeve Tube Tube The Weld Yoke implement Yoke

Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing

PTO Drive Shaft Types

There are two kinds of PTO shafts.

Anyone who owns a tractor has to be aware of the PTO shaft model on their tractor.

It is difficult to see the necessity of identifying the PTO shaft until they requires replacement of the worn-out PTO shaft.

Let's talk about both PTO shaft types, and then show how easy it is to identify the different types of shafts.

One PTO shaft is referred to as the domestic type, while the second one is commonly referred to as the standard.

You can distinguish the different types by their shapes.

The common PTO shaft has four forms: square, round, rectangle and splined.

Metric PTO shafts are made up of three forms, including bell, star and football.

Domestic PTO shafts are widespread throughout North America, so the shaft design is generally associated with North America.

It is believed that the Metric PTO shafts that have balls and stars are thought to originate from Germany.

A Metric PTO shaft that has an oblong shape is thought to be attributed to Italy.

Each PTO shaft design (shape) is made up of several models, which differ in PTO length and length.

After identifying the type of shaft it is possible to measure the End of the cap from another at the U-joint as well as the diameter of the cap's exterior.

cap bearing to determine the series of the shaft.
