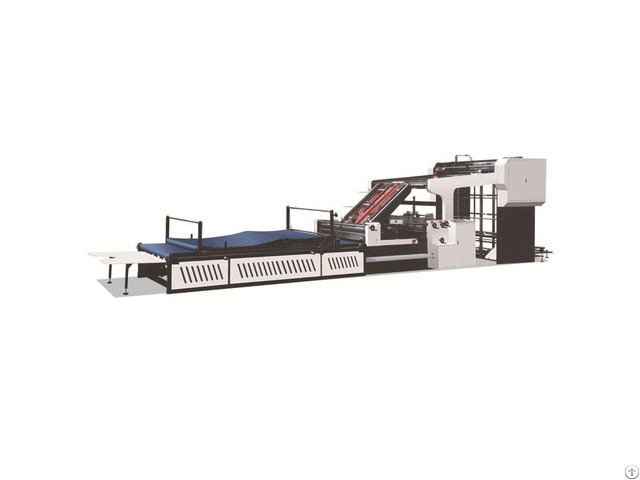

Zh Gs Automatic Flute Laminator Machine - China

Zh-gs automatic flute laminator machine for paperboard and the speed is very high, the fasterest speed of 12000hour of the most high-end electrical control system

general features:

quality: due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

efficiency: patent type feeding width automatic adjustment device and printing locking device with screw.

with 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.

service: based on the industry’s first use of pdm design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support.

24 hours service with 12 engineers .

characteristics:

1 - computerized, all the operation data are reflected in the microcomputer, which not only improves the working efficiency, reduces the working intensity of employees, but also strengthens the control of product quality.

2 - high speed, computerized, 10000 sheets/hour(within 700mm)

3 - gluing device: high precision gluing transport with paper and glue block device, automatic level control, does not overflow glue in high speed, can adjust the glue reflux.

4 - detection device: using multiple sets of electric eye detecting surface and bottom paper forward position, make two servo motors drive independently, and the up and down paper in right position, precisiotn is ±1.0, accurate and smooth.

5 - fully functional electronic control system: adopt human - machine interface and plc control, can automatically detect operation status, unnormal display and working record.

electrical protection is better, electrical characteristics are "ce" standard.

6 - the automatic flute laminator machine manufacturing process as the basis of products, our company is more strict and professional.

as the main power of the machine, our company uses"siemens" motor as main motor, all the parameters are high-end products in this industry; the bearings of key parts are “nsk”, it accounts for over 90% of the whole machine; the whole machine is controlled by plc; variable frequency speed control, photoelectric switch uses “omron”.

button adopts "schneider" and so on.

the bottom paper adopts servo motor control, wide side conveyor belt to transport, it effectively ensures the accurate delivery of bottom paper.

about transport method, our company adopts synchronous belt, the synchronous belt takes the famous brand "gates" as the first choice.

low noise, accurate transport, smooth operation.

7 - gluing device(gluing roller) high precision mirror roller, provide a more powerful guarantee of gluing control and avoiding glue waste.

surface unit adopts pu round belt and fan, make sure the paper runs smoothly, adjust servo position on both sides.

the “feeder” plays a key role of automatic flute laminator, the professional our supplier "fanyuruida" is obvious to all.

the main machine wallboard is processed by the processing center, so as to effectively avoid the machine matching error caused by processing.

the cover is processed by the cnc center, with a more beautiful appearance and a more reasonable structure.

external treatment is electrostatic spraying, it is serious.

technological parameter: main parameter model zh-1450g zh-1450gl zh-1700gl

max.

paer size 1450*1250mm 1450*1400mm 1650*1400mm

min.

paer size 400*400mm 400*400mm 450*450mm

surface paper thickness 200-800g/m² 200-800g/m² 200-800g/m²

buttom paper thickness 0.5-10mm/m 0.5-10mm/m 0.5-10mm/m

max speed 12000pcs/h 12000pcs/h 12000pcs/h

precision ±1mm/m ±1mm/m ±1mm/m

dimension 1350l*2500w*2400h 13500l*2500w*2400h 13500l*2700w*2400h

total power 25kw 25kw 25kw

weight 5.5t 5.5t 6t price and payment :

zh-1450g automatic flute laminator machine

usd: 72500/set fob tianjin

payment: 30% t/t in advance, balance paid before shipmenet

zhenhua is specialized in produce automatic partition machine, auto folder gluer machine, etc.

as a world-class equipment manufacturing and service provider integrating r&d, production, sales and service of packaging equipment, we provide quality equipment, effective and convenient packaging solution for customers.
