Asme B16 34 Class 300 Lb Cast Steel Gate Valve Flanged Ends - China

price: contact company for price

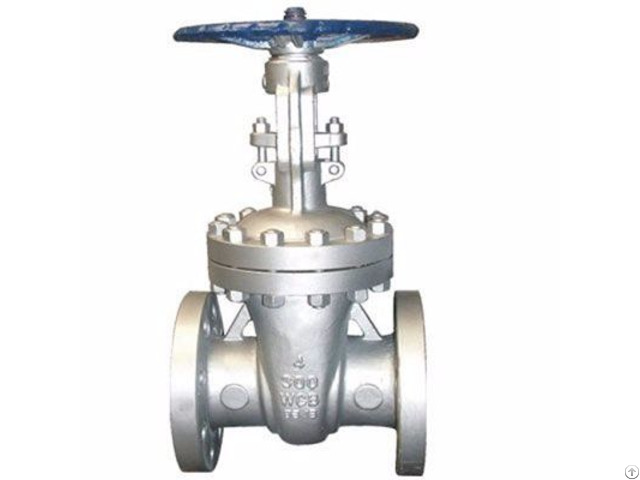

Asme B16 34 Class 300 Lb Cast Steel Gate Valve Flanged Ends

Products Photos Catalog Asme B16 Class 300 Photos Catalog

China Class 300 LB Cast Steel Gate Valve Manufacturer Shinjo Supplies Class 300 LB Cast Steel Gate Valve, ASME B16.34, Flanged Ends, Metal Seat.

Features:

Outside Screw and Yoke (OS & Y), Rising Stem.

Bolted Bonnet.

Flexible Wedge (2" Solid).

Extended Bonnet for Cryogenic Services.

By Pass on Request.

Locking Device Optional.

Specifications:

Design: ASME B16.34/API 600.

Face to Face: ASME B16.10.

End to End: ASME B16.10.

End Flange: ASME B16.5/B16.47.

BW End: ASME B16.25.

Test: API 598.

Special: NACE MR-01-75 - Structure of CL 300 LB Gate Valves: Parts & Materials:

1 - Body: ASTM A216 GR.

WCB.

2 - Seat Ring: ASTM A105+Stellite Faced.

3 - Disc: ASTM A216 GR.

WCB+13Cr Faced.

4 - Stem: ASTM A182 GR.

F6.

5 - Gasket: Soft Iron + Graphite.

6 - Bonnet: ASTM A216 GR.

WCB.

7 - Bonnet Bolt Nuts: ASTM A194 GR.

2H.

8 - Bonnet Bolts: ASTM A193 GR.

B7.

9 - Backseat Bushing: ASTM A276 Type 410.

10 - Stem Packing: Braided Graphite & Die formed Graphite Ring.

11 - Eyebolt Pins: Carbon Steel.

12 - Gland Eyebolts: ASTM A307 GR.B.

13 - Gland: ASTM A276 Type 410.

14 - Gland Flange: ASTM A216 GR.

WCB.

15 - Eyebolt Nuts: ASTM A194 GR.

2H.

16 - Grease Nipple: Carbon Steel.

17 - Stem Nut: ASTM A439 GR.

D-2.

18 - Retaining Nut: Carbon Steel.

19 - Hand wheel: Ductile Iron.

20 - Hand wheel Nut: Carbon Steel.

21 - Screw: Carbon Steel.

22 - Yoke: ASTM A216 GR.

WCB.

23 - Yoke Pan Bolt: ASTM A194 GR.

2H.

24 - Nuts Yoke Pan Bolts: ASTM A193 GR.

B7.

25 - Bearing: Steel.

26 - Lantern Ring on Request: ASTM A276 Type 410.


Company Contact:


  • Phone: 86-21 5620 6641

  • Address: No 150, Honxing Road, Shanghai, China., Shanghai , Shanghai , China

  • Email: Email


Published date: July 19, 2017

  • Business Description: Shanghai Shinjo Valve Manufacturer is specialized in producing various industrial valves: Ball Valves, Check Valves, Gate Valves, Globe Valves, Plug Valves, Butterfly Valves, Safety Valves, Hydraulic Control Valves, Control Valves, Pressure Reducing Valves, Needle Valves, Cast Steel Valves, Forged Steel Valves, Balance Valves, Diaphragm Valves, Blind Valves, Lined Valves Series and types of Pumps.

    Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment industrial system etc.
