Automatic Mechanical Great Wall Double Clipper - China

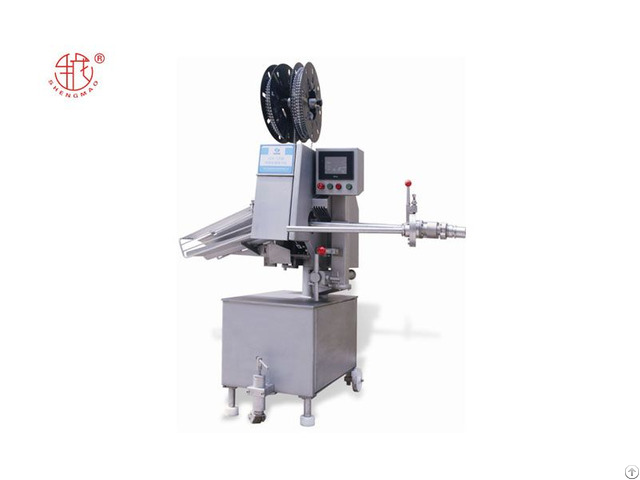

Automatic Mechanical Great-Wall Double Clipper

Features:

Mechanism Automatic Double Clipper is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer.

The voiding separator provides portions of precise weight, which are clipped as single sausages or rings.

Trend-setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.

Automatic Double Clipper series built with the Japan Panasonic servo motor as the drive system, the man-machine interface from Taiwan and the Japan Mitsubishi PLC.

It is designed with the state-of-the-art forced wire-feed mechanism, featuring precise and clear action.

Technical parameters:

Model Clip Speed(time/min) Applicable Clip Casing Range(mm) Power(kw) Voltage(v) Weight(kg) Size(mm)

JCK-120 120 15-6/15-7/15-8/15-9 32-90 2.7 380 370 980x880x1800

JCK-130 100 15-6/15-7/15-8/15-9 32-130 2.7 380 420 1200x1320x2000

JCK-160 80 18-6/18-7/18-8/18-9/18-10 /18-11/18-12 50-160 3.5 380 960 1300x1360x2200 Advantages of Automatic Clipping Machine

Ranked as Top Leader in China in terms of productivity and equipment faults.

Tough stainless steel Design construction guarantee extensive machine life.

Ensures resistance to aggressive cleaning.

Easy touch means simple and convenient machine operation.

Friendly user interface makes the machine control easier.

Operator is quided intuitively through the flat menu structure with informative

and can easily control the complete machine at the touch of a finger.

Programs set of parameters easily managed screen and settings speed up product

change rapidly.

Company Contact:

• Posted By: Hebei Shengmao Packaging Materials Co., Ltd.

• Phone: 86-19931231230

• Address: Donghuzhuangyuan A, North Third Ring Road, Baoding , Hebei , China

• Email:

• Website: https://www.sausageclipcn.com

• Business Description: Hebei Shengmao Packaging Materials Co., Ltd. was founded in 1992, is a collection of

  scientific research, production, marketing and technical services as one of the economic

  entities.

  after a long period of exploration, research and practice, we have developed a series

  of products such as clipper machines, Great Wall clips(R-clips), U-shaped clips, wire clips,

  Used in a variety of emulsion explosives, silicone rubber, meat products, mining anchors,

  edible mushrooms, fruits, supermarket packaging and other small packages of ligation and

  sealing.

  Great Wall clips with the German Poly Card / Switzerland Tipper tie and all domestic clipping

  machine matching, to meet the use of a variety of punch card, model complete

  specifications: 12-6 / 15-06 / 15-07 / 15-08 / 15 -09 / 15-10 / 18-08 / 18-09 / 18-10 / 18-11 /

  18-12 / 18-13 / 18-14, etc., but also can be customized according to customer needs various

  types of color buckle.

  U-clips buckle series of products of the technical indicators than the same imported

  products, with the German Poly Card / Switzerland Tipper tie clipping machine matching,

  complete specifications Model: 500/502/503/504/506/509/7 01/711 / 713 / 100T / 121T / 201T

  / C50S / C90S / C130S, etc.

  And exported to foreign series buckle E210 / E220 / S628 / S632 /

  S635 / S740 .

  Can also be customized according to customer needs various types of color

  buckle.
