Automatic Ultra High Speed Flute Laminating Machine - China

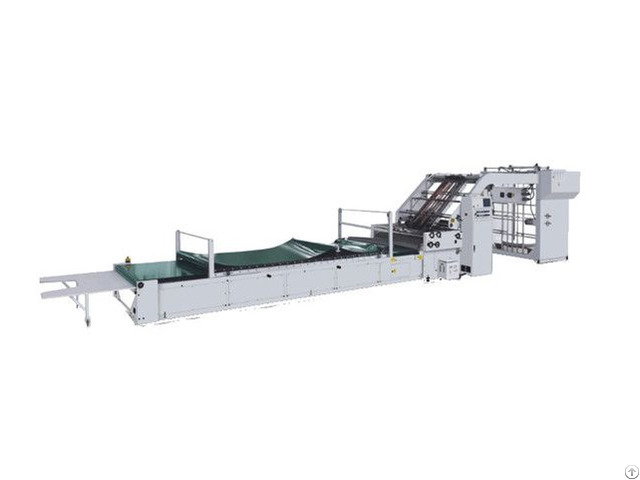

Automatic Ultra high speed flute laminating machine

Semi-automatic flute laminating machine

Automatic flute laminating machine Model UF2-1300 UF2-1450

Max size 1100*1300mm 1100*1450mm

Min size 400*400mm 400*400mm

Thickness of the upper paper 150-800g/m2 150-800g/m2

Thickness of the bottom paper 0.5-10mm 0.5-10mm

Speed 10000/h 10000/h

Accuracy ±1mm ±1mm

Overall dimension 13.5*2.3*2.6m 13.5*2.45*2.6m

Power 200v3-25ph 200v3-25ph

Weight 4500kg 5000kg

Automatic flute laminating machine are designed for laminating cardboard and corrugated board (Flute shape A, B, C, D, E, F and N), 3 layer, 5 layer, or 7 layer corugated paperboard all can be laminated smoothly and accurately.

Electrical components of internationally known brands are adopted to ensure reliability of running.

This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc.

With the expansion of business scope, Shandong RiNo International Trade Co., Ltd quickly moves forward to the world and becomes an export-oriented company that integrates production and trade, includes paper packaging products, corrugated packaging machinery equipment, packaging product manufacturing equipment & consumables such as Corrugated Cardboard Machine, Printing Machine, Folder Gluer Machine, Automatic Die-cutting machine, Iron Wire and many other products, providing a full range of services from product to technical support.

1 - Computerized high speed lamination, up to 10000 sheets per hour.

2 - Consisting of stream feeding suction head, four sets of forwarding suckers ensuring smooth transportation substrate.

3 - Feeder seat: E-type low-pile board design, can be fit into place the paper in pallet truck.

4 - Paper collection section: matching fluff type of paper structure, can overlap the finished product after pressing to ensure the smooth of the paper neatly.

Top feeding unit Put the paperboard on the flat plate, this unit automatically up to the designated location, feeder deliver the paperboard by vacuum absorption.

Bottom feeding unit This unit adopted the unique electrical transmission structure, ensure the high speed of sheet

conveying and accuracy and not deflect.

The transmitting belt has strong adaptability of the Alice of corrugated paper.

Gluing unit:

Using stainless steel glue roller, never rust, after grinding the amount of glue keeps in the minimum to ensure uniform glue, lower roller is use water roller clean.

Electrical unit：

According to the European CE standard design, to ensure that the whole machine is stable, high efficiency, low failure, combined with the man-machine interface and PLC to warn, detection the fault, operating speed and other information displayed on the screen.
