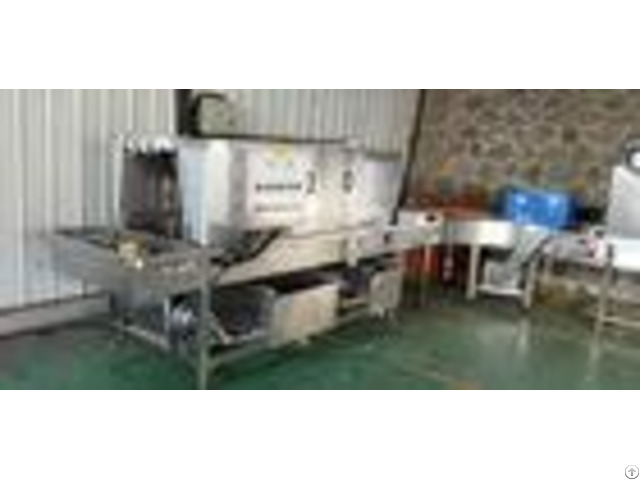

Crate Washing Machine Fruit Canning Equipment Stable Operation For Disinfection - China

Crate Washing Machine Canned Fruit Production Line disinfection machine Description: Cleaning is divided into three sections of the first paragraph of hot alkaline water, the second paragraph of hot water, the third paragraph of tap water.

In addition to the third paragraph of third-stage spray water tap water outside the independent circulation filter tank, the third paragraph of tap water as a supplementary water recovery to the second paragraph of the tank after heating part of the sewage is automatically discharged.

The first, two water tanks equipped with a heating tube temperature from room temperature to 95 C free set.

The first paragraph of the pump power 1.5KW, the second paragraph of the pump power 5.5KW, the third paragraph of the pump power 0.75KW, conveyor motor power 0.75KW, delivery speed 3-15m / min adjustable.

Cleaning activities on both sides of the door waterproof, two into the basket with soft curtain closed waterproof, convenient cleaning and maintenance equipment at any time.

Electric control box for stainless steel equipment, all the power of centralized control The length of the machine is customized according to customer's needs.

The minimum length we recommend is 5 meters.

If it is too short, the washing effect will be affected Equipment principle: The turnover baskets to be cleaned are input into the washing machine by the stainless steel chain, and then the baskets are cleaned by high temperature alkaline water high pressure hot water normal temperature tap water; the continuous cleaning is adopted to improve the cleaning efficiency Device Configuration: The main body of the equipment is made of 304 stainless steel, clean and sanitary; nozzle using food-grade high temperature plastic nozzle, adjustable cleaning angle; avoid dead ends, to ensure cleanliness; 304 stainless steel pump dedicated hot water pump; rails on both sides can be left and right regulation, suitable for cleaning different sizes of baskets; heating method optional steam heating electric heating two.

Features: speed, temperature adjustable, easy to operate double filter design, easy to clean at any time adjustable brush design, cleaning more clean pipeline damping connection, more stable operation According to the actual basket size and customer requirements specially designed and customized.

About us: Shanghai Duxia Industry & Trade Co., Ltd. is specialized in developing and manufacturing various whole set of packaging production systems and import & export trade.

Based on enormous technology skills, we follow market demand as our guide, production development as our responsibility, we can design the best economical reasonable solution program.

Advanced design and professional technology, precise manufacturing is our remarkable characteristics.

Our company already pass quality management system, established integrity Quality Guarantee System, to insure the quality and performance of our products.

Our company devote to digesting and absorbing international advanced science of processing and automatic equipment.

We have cooperated with company in Canada, Italy, Switzerland for long time.

We have developed various advanced filling, packaging and conveying equipments and we have reached to professional level.

Our automatic production system is widely used in food, beverage, dairy products, canned products, cosmetic, lube, medicine, chemistry, etc.

Service: One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .

Were equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems.

Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service.

Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
