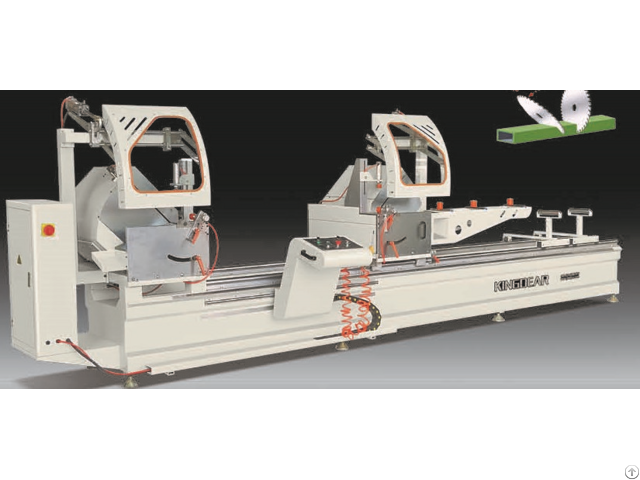

Digital Display Double Head Cutting Saw Model No Ljz2 X 500×4200 - China

price: 101.00 Dollar US$

PRODUCT DESCRIPTION

Digital Display Double Head Cutting Saw Equipment Feature

■ Used for especially wide profiles cutting such as aluminum profile.

curtain wall and radiator etc.

■ Feeding system adopts imported linear guide pair.

with high accuracy and stability.

■ Right head feeding adopts locking band type driving ensured high accurate lock locating and driving .

■ Adopt digital display technique .

Cutting size can be displayed on the screen .

ensured high processing accuracy.

■ Imported carbide saw blade give accurate processing and high efficiency.

■ Saw blade rotate smoothly due to high accuracy main spindle.

■ Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

■ Auto-induction middle profile supporter and following profile supporter made the loading and clamping convenient.

■ Auto-opening guard shield ensured safety operation.

Digital Display Double Head Cutting Saw Technical Parameter:

1) Power supply: 380V, 50Hz

2) Main motor power: 2.2KW x 2

3) Saw blade diameter: Φ500mm

4) Max.

cutting length: 4, 200mm

5) Cutting angle: 45° - 90°

6) Working air pressure: 0.5 - 0.8MPa

7) Weight: 1, 850kg

Processing Accuracy

■ Repeat locating length: ≤0.1mm

■ Cutting angle allowance: ±5'

■ Cutting profile surface planeness: ≤0.10mm

■ Cutting profile surface roughness: Ra12.5μm


Company Contact:


  • Phone: 13906416245

  • Address: 218 Jiqi Road, Jinan City, China

  • Email: Email


Published date: August 6, 2021 - Modified date: August 6, 2021

  • Business Description: Jinan Kingdear Machine Co., Ltd. is a modern high-tech enterprise specializing in the research and development, production, sales and technical service of high-grade aluminum doors and Windows, aluminum curtain wall equipment and industrial aluminum processing equipment, automatic production line.

    The company series of products include aluminum doors and Windows equipment, aluminum curtain wall machinery, industrial aluminum processing equipment.
