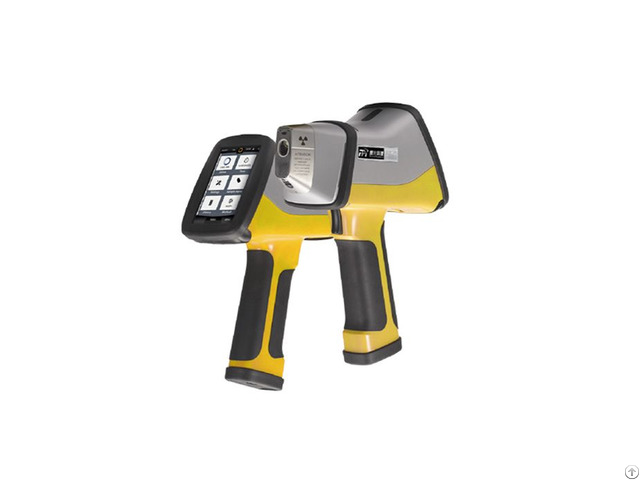

FPI MiX5 Portable XRF spectrometer

1 - Overview

FPI MiX5 handheld X-ray fluorescence (XRF) analyzers( FPI MiX5 Portable XRF spectrometer ) enables fast, accurate and non-destructive analysis of a variety of materials with the world's leading X-ray fluorescence analysis techniques.

It can determine the metal grades in seconds, with excellent metal analytical ability.

Analysis results of laboratory level can be achieved with extra testing time.

MiX5 series can analyze element composition of ferrous, nonferrous metals and alloy Enable customers to get accurate analysis results in quality control, material sorting, alloy identification, security, accident investigation etc.

Manufacture FPI MiX5 Portable XRF spectrometer

2 - Features

(1).

Optimised calibrations making reliable testing

FPI MiX5 series combine a robust fundamental parameters (FP) method and empirical calibrations for superior precision and accuracy.

Simply select the application that you need and analysis can be finished in seconds.

(2).

Extensive, customisable grade library for accurate alloy identification

(a).

The FPI MiX5 includes the most comprehensive grade library: the pre-installed, user-selectable AISI (>650 grades), DIN, JIS, and GB libraries include a total of over 1600 alloys.

Users can modify the existing libraries, add new grades (specialty or exotic alloys) or create their own library.

(b).

The pre-loaded grade libraries include: Nickel alloys Low alloy steels Stainless steels Tool steels Copper alloys Titanium alloys Aluminium alloys Zirconium alloys Cobalt alloys And more.

(3).

Ultimate performance for reliable results.

(a).

The optimised combination of a high performance X-ray tube and large area silicon-drift detector (SDD) delivers the speed and performance required in even the most demanding metals applications.

(b).

Superior light elements (Mg to S) analysis for fast and accurate analysis of most commercial alloys, including aluminium, titanium, bronze, high temperature alloys, etc.

(c).

Low limits of detection, for accurate grading and determination of impurities and penalty elements

(d).

Fast and accurate analysis for high speed sorting

(e).

Optimum efficiency: light weight(1.5kg), small, and ergonomic design, with up to 10-12 hours battery life
