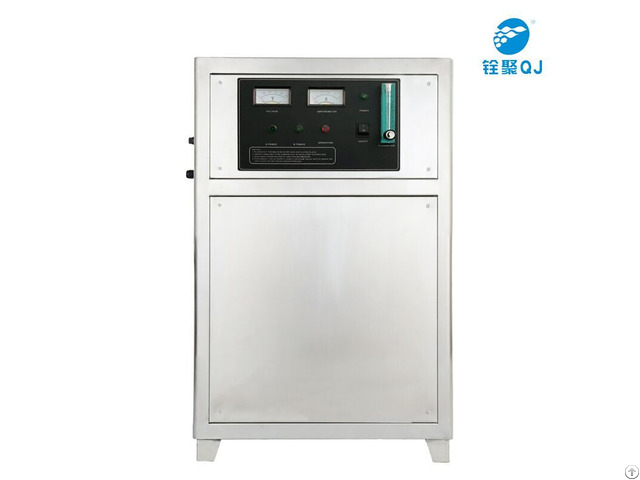

Oxygen Generator - China

Product Description

Industrial oxygen generator Technology Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material.

It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation.

Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.

) are used as a trap, preferentially adsorbing the target gas species at high pressure.

The process then swings to low pressure to desorb the adsorbed material.

PSA generators provide a cost-efficient source of oxygen.

They are safer, less expensive, and more convenient as an alternative to tanks of cryogenic oxygen or cylinders and can be used in various industries including agricultural, pharmaceutical production, water treatment and glass manufacture.

More information please visit our website FEATURES: ● Industrial oxygen generator is used for aquaculture or feeding oxygen to ozone machine etc.

● Used with good brand oxygen molecular sieve.

● With refrigerant dryer and PSA oxygen generation unit, ultra filters, inner air compressor, etc.

● Under humidity is about 60-80%, Refrigerated dryer is necessary to dry the hot compressed air which pumps into oxygen bed, to protect oxygen life time.

● Control: Ammeter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input.

SPECIFICATIONS 3-20LPM oxygen generator

Model Unit QJ-OX3L QJ-OX5L QJ-OX10L QJ-OX15L QJ-OX20L

Oxygen flow rate LPM 3 5 10 15 20

Oxygen purity % 92+-3

Dimension cm 55*40*73 55*40*80 55*40*116 55*45*135 55*45*135

Output oxygen pressure Mpa (Bar) 0.1(1)

Voltage V 220/110

Air Input / Inner air compressor Inner air compressor Inner air compressor External air compressor External air compressor

External Case / Stainless Steel

Requirement of Air Condition:

Temperature -5-40℃

Humidity 60-80%

Air with dust content ≤20mg/m3

Air with H2S, SO2 ≤5PPM

Air with CO2 ≤250PPM

Air with C2H2 ≤0.5PPM

Air with CmHm ≤20ppm

Air with Acidic Gas No more Pungent Smell and Corrosive Smell

Ventilation Draftiness
