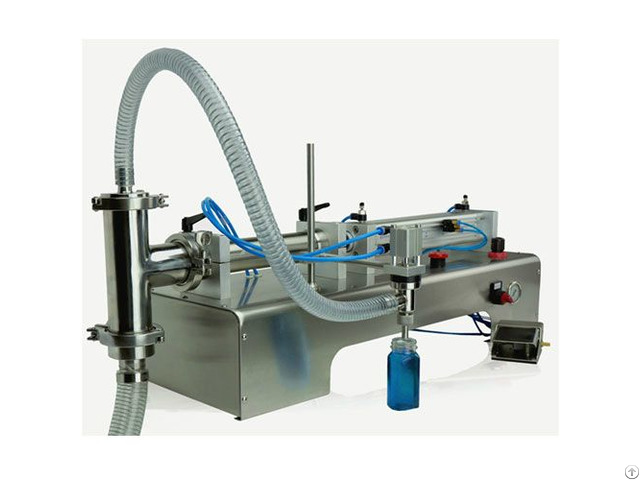

Semi Automatic Piston Filling Machine For Free Flowing Liquids - China

JERRY PACKS tabletop piston filling machine is highly accurate, versatile, and extremely user friendly.

This volumetric piston filler draws liquids and other low viscosity products directly from a tank or drum which eliminates the need for a product hopper.

This piston filler can also be used as a metering pump to dispense a controlled volume if necessary.

Dis-assembly and cleaning is extraordinarily easy and is usually accomplished in a matter of minutes (no tools required).

The operator drops a line of flexible tubing into a drum or tank, adjusts the volume of fill to the desired setting and places an empty container under the filling nozzle.

With a simple press of a foot pedal, the exact quantity of product is drawn from the drum and dispensed into the container.

The machine operates one fill at a time, and stands by until the foot pedal is depressed again.

1, Features:

1.1 Tool free strip down for easy cleaning

1.2 All 316L stainless steel sanitary tri-clamp connections, connection "T's", product cylinder, and contact parts

1.3 Suitable for food and pharmaceutical applications

1.4 Bottom close positive shutoff nozzles for drip free operations (sized for your application)

1.5 Small footprint for simple bench mounting

1.6 Quick release nozzle and feed pipe

1.7 Pneumatic operation suitable for hazardous areas or wash down facilities

1.8 Fills free flowing liquids, food products.

1.9 Available with 1 or 2 heads in a variety of piston sizes ranging in volume

Drip free bottom close nozzle(s)

1.10 Filling speeds: Up to 30 b.p.m.

(depends on product and container size)

1.11 Fill accuracy: +/- 0.25%

1.12 Product suction and dispensing speed adjustment

1.13 Food and pharmaceutical 316 stainless steel contact parts

1.14 Air requirements: 2-cfm @ 90-psi

1.15 Any free flowing liquid

Company Contact:

• Posted By: Changzhou Jerry Packaging Technology Co.,Ltd

• Phone: 0086-13306143245

• Address: NO.96,Jinsheng Middle road,jintan district , changzhou , Jiangsu , China

• Email:

• Website: https://www.jpacks.com

• Business Description: CHANGZHOU JERRY PACKAGING TECHNOLOGY CO., LTD (JPACKS)is founded in May 2006.

  The JAPACKS Story

  JPACKS designs and builds packaging machinery to help our customers reach their unique production goal.

  We build a wide range of Filling Equipment tailored to the way you do business.

  Our equipment is hand-built right in Chinese.

  We are not only a Filling Equipment manufacturer, we design and build Bottle Rinsers, Capping Machines, Cap Sorters, Conveyors, and Bottle Loading and Accumulating Turntables.

  Our equipment is engineered for durability and ease of use.

  We also work with leading manufacturers of Labeling Machines, Induction Sealers, Coding Machines, Shrink Wrapping Equipment, Case Building and Palletizing Machines to deliver complete turn-key packaging lines.

  We develop the automatic packaging line, including bottle feeder, filling, capping, labeling, sealing, printing, carton erecting, carton packing, carton sealing.

  We develop the full automatic horizontal packaging machine, vertical packing machine, cartoner, assistant weighing .

  So far we have achieved ISO9001 quality management system certificate, CE certificate and 30 utility patents of single machine.

  JPACKS machines are exported to many countries, such as American, Malaysia, Vietnam, South Africa.

  As an enterprise in the period of the high-speed development, JPACKS has always attached importance to innovation, taking technology leading as the quality policy, developing the new products actively, and meeting the customers required in advance.

  JPACKS is fully integrated into the global market, learning advanced ideas and technologies, catching the different consumption demand, making efforts to improve the independent innovation.

  JPACKS are qualified enough to serve customers from various industries, such as food, beverage, pharmaceutical, household and personal care industry, excellent packing solution always offered according to customers products features and market attractiveness.

  in other words, each step of JPACKS aims to helping customer reduce the cost, enlarge the market.
