Ssd03 Drilling Tapping Spindle Unit Servo Feed - Taiwan

price: contact company for price

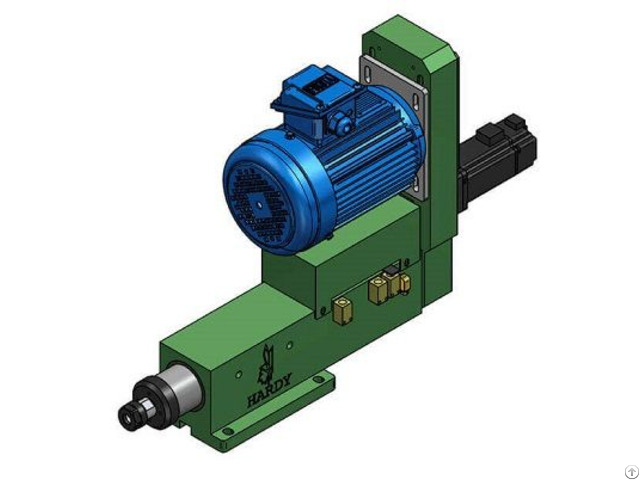

Ssd03 Drilling Tapping Spindle Unit Servo Feed

Products Photos Catalog Ssd03 Drilling Tapping Photos Catalog

SSD03 spindle unit is designed servo feeding with ball screw grade C5 and servo motor, the accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 6mm (S45C).

This unit allows to perform all types of machining applications such as drilling, tapping, chamfering, reaming and countersinking.

Feature:

1 - Standard 3-phase AC motor 0.4kW is included, optional maximum power up to 0.75kW

2 - Belt driven at fixed speed and incorporate a timing, V or Poly-V belt

3 - Feed rate is programmable and driven by preferable servo motor

4 - Feeding is driven by HIWIN or PMI Grade C5 ball screw

5 - Spindle taper ER16, JT1 and JT2 are available

6 - Available for servo driven at variable speeds

7 - OMRON proximity switch sensors and stand are furnished

8 - AC Induction Motor protection IP 54


Company Contact:


  • Phone: 886-4-24860602

  • Address: No. 22 LiouShun RD. , Taichung , Taiwan , Taiwan

  • Email: Email


Published date: November 8, 2020

  • Business Description: HANN KUEN is an expert in developing & manufacturing special purpose machine units, such as drilling head, tapping head, boring and milling head, servo driven facing head, built-in motor spindle unit, spindle with auto unclamping cylinder, servo and hydraulic slide tables.
