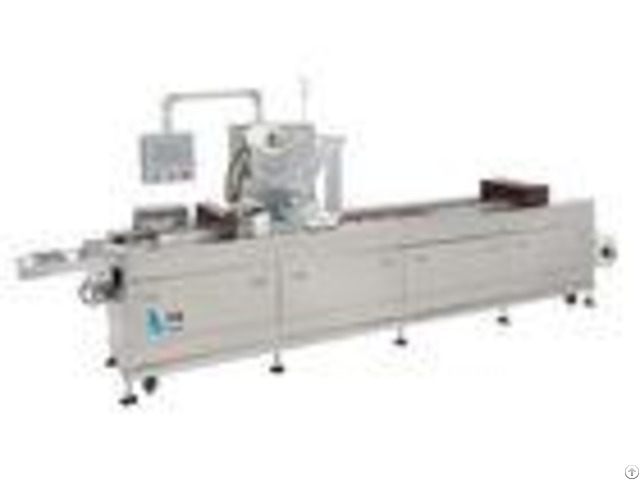

Thermoforming Industrial Vacuum Packaging Machine For Seafood Pastry Noodles - China

Product Name Thermoforming Industrial Vacuum Packaging Machine Meat Seafood Pastry Noodles Description: Use a stretchable and thermoplastic film or sheet as a raw material to make a container which is filled with the material and then covered with a film or sheet for evacuation and sealing.

Suitable for packaging of food, commodity and other products, such as meat products, aquatic products, cakes, Myanmar, all kinds of cooked food packaging.

No pre-customized packaging, film stretching forming, filling materials, vacuum and heat sealing, cutting and other functions in one, convenient and fast, low energy consumption, short cycle, high efficiency Features: Machine is made of stainless steel, easy to clean.

The machine equipped with original BUSCH vacuum pump which is imported from Germany.

It guarantees machine performance stable.

With German Siemens programmable controller and touch screen, simple to use, easy to operate.

Strong adaptability for the packaging materials and packaging specifications, within the prescribed scope can be arbitrary choice.

Japanese Panasonic servo system driver, running steady and rapid and accurate.

Only need to change mould, can be on one device in different specifications of products.

Above vacuum packing, can input all kinds of mixing gas, can extend fresh time.

Technical parameter: - - - - | DX-ATVP-S/D320 | DX-ATVP-S/D420 | DX-ATVP-S/D520 | Packing speed | 4-8 cycles/min | 4-8 cycles/min | 4-8 cycles/min | Bottom film thickness | 0.8mm | 0.8mm | 0.8mm | Bottom film width | 322mm | 422mm | 522mm | Top film width | 285mm | 385mm | 485mm | Max.

forming size | 300x400mm | 400x400mm | 500x400mm | Max.

forming depth | 80mm | 80mm | 80mm | Power supply | AC380V 50Hz(3phase) | AC380V 50Hz(3phase) | AC380V 50Hz(3phase) | Air consumption | 500L/min | 550 L/min | 650 L/min | Air supply | 0.6Mpa | 0.6Mpa | 0.6Mpa | Loading area length | 1.5m | 1.5m | 1.5m | Power | 10kw | 12kw | 15kw | Dimension | 4500x1000x1700 | 5200x1100x1760 | 6000x1200x1760 | Weight | 1300kg | 1600kg | 2200kg | - - - - Service: Pre-sale: Receive your call for the organization of technical seminars to discuss customer equipment requirements.

Provide you with a detailed " proposal", including 1, a sample of equipment; 2 - The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.

Selling: 1, keep in touch with you, invite customers to visit the company, supervise production and assembly.

2 - Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.

3 - Regularly report the progress of production to the customer.

After sales: (according to the international standard after-sales service standard operation) One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.

Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.

Make regular visits to each customer once a year and record equipment records.
