Tz1600 30 Single Aluminium Coating Line - China
price: contact company for price

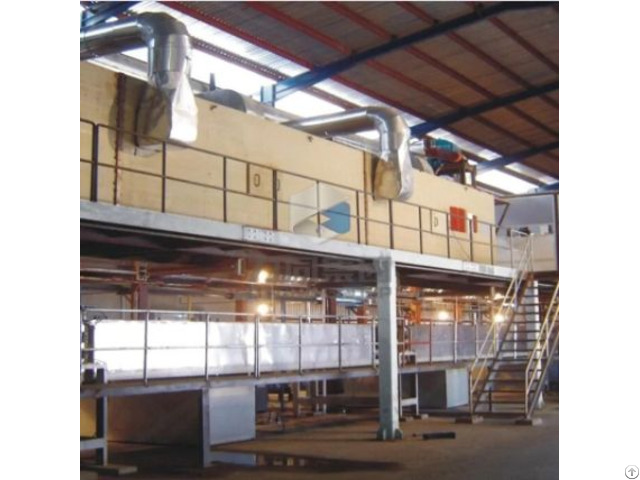

TZ1600-30 Single-Coating Aluminium Coating Line
Coating line features:
This is an economic type of coating line apply to most ACP top/bottom coil coating.
Product thickness 0.1mm~0.5mm is common used for ACP.
This coating line can also produce some gauges of roofing coils.
With a rewinding line, this coating line meets basic requirements from raw material to finished product of coating factory.
The line requires a minimum 70m×12m×7m workshop dimension, which suits most factories in limited dimension.
Application: For coating top coil and bottom coil of ACP(Aluminium Composite Panel)
Advantage: Economical and easy to use, small dimension workshop needed
1 - Main parameters of coating line
Material parameter
Thickness: 0.1~0.5mm
Width: 1600mm
Outer diameter OD(max): Φ1400mm
Inner diameter: Φ150mm, Φ405mm
Bobbin material: Steel or paper
Inverval-layers deviation tolerence: ≤0.8 mm (Excluding the bottom 5 layers and exterior 2 layers)
Coil over-all deviation tolerence: ≤2 mm (Excluding the bottom 5 layers and exterior 2 layers)
Coating thicknes: Dry film thickness: 8~20 um
Product Weight: Max 4000kg(Excluding bobbin)
CCL Processing Speed: 30 m/min (Speed benchmark: thickness 0.25mm coil exclude PVDF coating)
Heating Energy Source: LNG, LPG
Roller coating Process: Continuous 1 side 1 coating & baking
Properties and features:
Roller width: 1800mm
Coils feeding centering adjustment : ±75mm
Threading speed: 5~15m/min(Adjustable)
Line maximum speed: 30m/min
Line speed accuracy: Steady Speed, ±0.1%;Acceleration, ±0.4%
Uncoiling tension range: 160~700kgf
Processing tension range: 160~700kgf
Coiling tension range: 320~1200kgf
Tension accuracy: Steady Speed, ±1.0%; Acceleration, ±2.0%
Line space dimensions: 55000mm×7.500mm×6000mm
Heating Energy Source: LNG, LPG 2 - Basic Production Process
Coil loading → Uncoil machine → Pretreatment (Including Degreasing, Roller brushing device, drying) → Chromizing → Drying → Re-direction → Topside roller-coating → Curing oven → Cooling → Tension machine → Recoiler → Coil discharging
3 - Main devices list
Name Quantity
Coil loading device 1
Sewing table 1
Pretreatment line 1
3M water drying device 1
Chromizing Coater 1
Chromizing drying device 1
Coater 1
Curing Oven 1
Heating system 4
Air cooling devices 1
3-rollers cooling device 1
Recoil machine 1
Electrical system 1
Rewinding line 1
Coil loading machine 1
Coil discharging machine 1
*Optional configuration: waste gas treatment and energy recycle system.
4 - Water and power consumption of coating line
Total power consumption: 80KW
Compressed air: Min5.5bar, 1Nm3/min, actual consumption 0.5Nm3/min
Water: Deionized water, supply quantity is about 4T/h
Heating fuel: LPG or LNG
LPG consumption: 0.2 CBM/min
LNG consumption: 0.5 CBM/min
5 - The coating line project design and manufacture leads 90 days, installation and testing leads 60 days.
6 - Trade terms: FOB, CIF are available
7 - Payment terms: T/T, D/P, LC are acceptable
8 - Packing style: Wooden pallet
9 - Transportation: by sea
Company Contact:
- Phone: 075582332214
- Address: No 67 Shunxiang Road, Daliang Town, Shunde District, Foshan , Guangdong , China
- Email:
- Website: https://www.ltcoatingline.com/
Published date: October 21, 2021
- Business Description: Guangdong Litong Environmental Protection Machinery CO., LTD is a subsidiary of Hong Kong Litong INT'T Holdings (Group) LTD. It was found in 2002, with a total investment of USD 7 million.
It is a successful practice of breaking through traditional processing industry and striding forward to the high-tech professional manufacturing industry.
It is an enterprise specialized in designing and manufacturing Environmental Protection Production Line, Aluminum Composite Panel Laminating Line (ACPL), Aluminum Color Coating Line (ACCL), Steel Color Coating Line (SCCL), Continuous Aluminum Anodizing Color Coating Line and so on.
We have the professional training of design, manufacturing, installation, debugging, operation and the strength of tracking the whole process of after sale service.
After many years' continuous efforts and development, the company has firstly developed energy-saving and environmental protection aluminum color coating Line with High-speed Roller Continuous Aluminum Anodizing Color Coating Line and other High-tech equipment in the domestic market.
It rewrote the above-mentioned equipment of China's long history of reliance on importing from abroad, and become a new light in Chinese Machinery Manufacturing industry.
