Ultra Short Face Dimension Electric Ball Valve - China
price: 300.00 Dollar US$

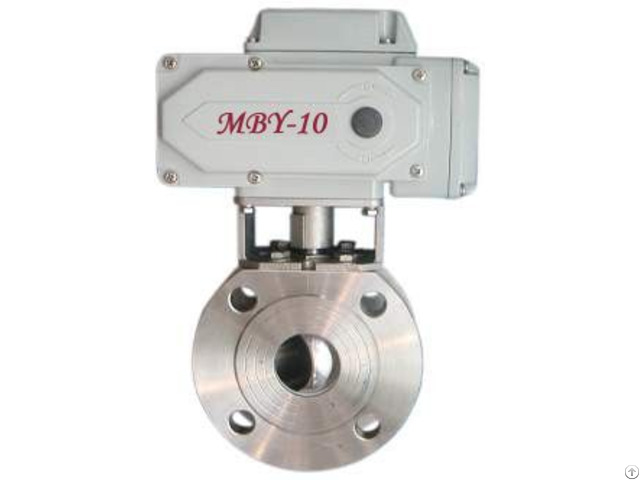

Product Description: Ultra short face-to-face dimension electric ball valve consists of the MBY series electric actuator and ultra short face-to-face dimension ball valve.
The series of products adopt an integrated structure, whose operation can be controlled by single phase power of three-wire-system, and which have strong function, small volume, light weight, reliable performance, simple configurement, large flow capacity etc.
Compared with the ordinary electric ball valve, this products present compact structure, small volume, light weight, near distance between the valve seat and end flange, small materials retention, superior seal performance, which is suitable for the occasion of strict seal requirement, and which is widely applied in the fields of chemical, petroleum, pharmaceutical, light industry and so on.
The Characteristics of the products ★Good seal performance, long service life More than 50, 000 operation life without fault, keep your system operating safely and reliably.
The valve seat with PTFE seal ring has good seal performance, whose structure is easy to seal, and the seal capacity of ball valve increases with the increase of the medium pressure.
The seal performance of valve stem is reliable, because the valve stem only rotates without doing the lifting movement so that stem filling materials is not easy to be destroyed, and seal capacity increases with the increase of medium pressure.
With good self-lubrication properties, PTFE materials make small friction loss with the body, and then prolong the service life of ball valve.
The convex step at head of bottom-up installed stem prevents stem from being ejected.
When the fire accident broke the sealing of valve stem, a layer metal contact is formed between the convex step and valve stem to assure seal performance of valve stem.
★Small flow resistance, big flow capacity, suitable for complex working conditions, easy to install The ball valve is one of the least flow resistances in all valves, even reduced diameter ball valve, whose flow resistance is quite small.
The thrust bearing reduces friction torque of stem to make stem operate evenly and flexibly for a long time.
Ultra short face-to-face dimension electric ball valve adopts the integrated structure, whose rotation can be controlled by single phase power, and which is stronger, smaller, lighter, portable, simple configurement, big flow capability.
The valve is very suitable for the occasion of high seal performance and big pipeline pressure drops to switch and cut off the medium of pipeline.
Compared with the same specifications of the gate valve and globe valve, the ball valve is smaller, lighter and easier installation in pipeline.
★Simple structure, easy to operate, high cost-effective.
The MBY series of electric actuators and the stem have been connected and debugged well, then the stem is driven by electric energy to realize 90 ° gyration action of the ball body.
The valve is accurately controlled via switch signal from industrial automation control system, which regulates and controls the different technical parameters of the flow, temperature, and pressure.
★Beautiful appearance, compact structure, various choices of sealed form This valve is an innovative optimized design by three-dimensional model of CAD, which has a beautiful and compact appearance and modern modeling.
The series valves adopt new material and new technology including 4 sealed forms respectively elastic sealing, high temperature resistant digital polystyrene, hard alloy and industrial ceramics, which ensures that the product presents many advantages such as the good quality, good product performance, more reliable, more economical, more durable.
The products are fully compliance with the latest technical specifications of international standard, which is the first choice for future automation system.
★The new technology for Direct Debugging Switch(DDS) in electric actuators.
Easy to use! Design by BANYAN in China.
It completely solved the problem of complex debugging and make the technology simpler.
The debugging can be simplified from 5 steps to 1 step.
The debugging for electrical and mechanical position can be easy achieved through rotating the knob on the top of the dial after electric actuators and valves are assembled together.
Company Contact:
- Phone: 86-0755-88396199
- Address: ROOM 527,THE BUS BUILDING,EAST OF FUHUA RD,FUTIAN DISTRICT,SHENZHEN, SHENZHEN , guangdong , China
- Email:
- Website: http://www.chinabanyan.com
Published date: April 16, 2018
- Business Description: Established in 2009, BANYAN company is a leading manufacturer and distributor of Actuated Valve, Valve actuator and Valve Control accessories in China.
Our products are experts in the field of automation machine and equipment manufacturing, environmental protection, water treatment engineering, power plant, petrochemical, aerospace, metallurgy, food and beverage, biological medicine, new energy and water affairs.
Our main products including to: Electrical actuated Ball Valve and Butterfly Valve, Electric Actuator, Valve Positione , Etc.
Leading with its high quality product and professionalism, BANYAN will serve all its new and regular customers more attentively and professionally with more excellent products.
100% products testing before delivery by ourself.
Since the first set of BANYAN High quality automated control valve was born, accumulated more than one hundred thousand sets of automated valve, actuators and valve control accessories are stable to serving on the industrial piping systems of Chinese mainland and Hong Kong and Macao, Sweden, Italy, Turkey, Saudi Arabia, South Africa, Indonesia, India, Vietnam, Thailand and etc.
Thanks and gratitude to our customers and suppliers, who have been given great trust, support, tolerance and help to BANYAN in the past 10 years more; appreciate for excellent employees of BANYAN, who are skillful, diligent, conscientious work, selfless dedication, let "BANYAN" stand out and faces stiff competition .
YES ! BANYAN are ready to serve your high quality actuator and actuated valve!
