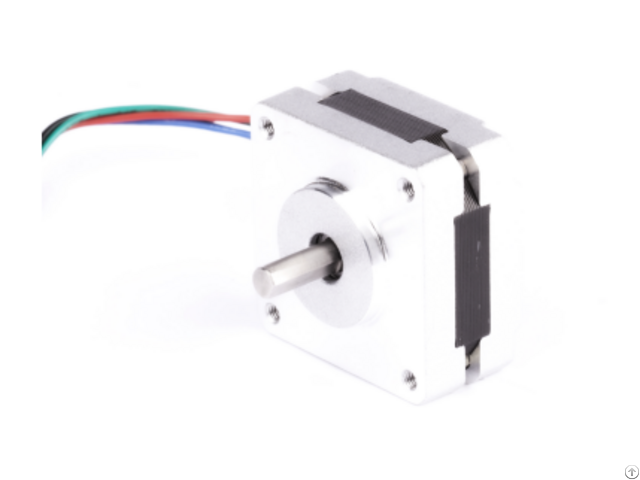

Wantai Stepper Motor 39byg003 - China
price: 20.00 Dollar US$
Part No: 39BYG003Single Shaft
Frame Size: NEMA16
Step Angle: 1.8 degree
Voltage: 12VDC
Current: 0.48A/phase
Resistance: 25Ohm/phase
Inductance: 22mH/phase
Holding torque: 100Kg-cm
Rotor inertia: 11g-cm2
Detent torque: 5kg-cm
Number of wire leads: 4
Weight: 0.12KG
Length: 20mm
Front shaft diameter: 5mm
Front shaft length: 24mm round shaft
This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!
Company Contact:
- Posted By: JiangSu WanTai Motor co.,Ltd
- Phone: 13815007798
- Address: No 18, Boyang Road, Jintan Area, Changzhou, Jiangsu, China, changzhou , jiangsu , China
- Email:
- Website: https://www.wantmotor.com
Published date: March 21, 2023
- Business Description: Our Factory
We are Professional stepper motor supplier and specializing in Hybrid Stepping Motor, DC Brushless Motor, Professional PM Stepping Motor, DC & Stepping Gear motor, CNC Stepper motor, Motor Divers and the relevant control system.
Annual turnout is more than 4 million units.
Annual turnover is more than 15 Millions USD dollars.
Our product are mainly used in Aerospace & Defense, Automation Applications, Commercial Equipment, Industrial Tool, Medical Device & Equipment, Medical Mobility, Printing & Imaging, Pump, Semiconductor Equipment, Vehicle, Milling Machine, Engraver Machine, CNC Routers Applications…etc.
of various trades.
