    • Custom Optical Window Ar Bbar Anti Reflective Coating Bk7 Uv Fused Silica Windows - China

    price: 10.00 Dollar US$

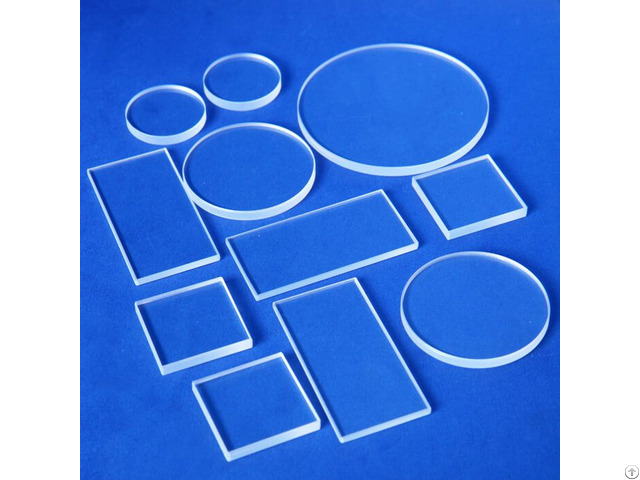

    Custom Optical Window Ar Bbar Anti Reflective Coating Bk7 Uv Fused Silica Windows

    Products Photos Catalog Optical Window Bbar Photos Catalog

    Optical windows are applied to isolate different physical environments while allowing light to pass.

    When selecting flat window you should consider materials, transmission, scattering, wave front distortion, parallelism and resistance to certain environment.

    JUKA Optical offers a wide range of different materials and different degree of precision optical window glass, such as bk7 window, UV fused silica window, quartz window, znse window, etc.

    Material: BK7 and Fused silica typically, Visible optical glass, Infrared optical glass, Colored glass;

    Tolerances: Low precision, standard precision, high precision;

    Glass Quality—— nd: ±0.001, ±0.0005, Melt controlled; ——vd: ±0.8%, ±0.3%, Melt controlled;

    Dimension Tolerance (mm): ±0.20, ±0.10, +0.01/-0.01;

    Thickness Tolerance (mm): ±0.20, ±0.1, ±0.005;

    Scratch-Dig: 80-50, 60-40, 10-5;

    Wave front Distortion 632.8nm: λ per 25mm, λ/4per 25mm, λ/20 per 25mm;

    Clear Aperture: 80%, 90%, 100%;

    Parallelism (arc min): 3-5 minutes, 1 minutes, 10 second;

    Bevel: 0.3±0.20mmx45°or upon requirement No bevel;


    Company Contact:


    • Phone: 19113487350

    • Address: No.18, Taixing Avenue, Economic Development Zone, Dujiangyan City, Chengdu , Sichuan , China

    • Email: Email


    Published date: March 18, 2020

    • Business Description: Chengdu JUKA Optical Technology Co., Ltd. is a professional manufacturer specialized in producing the high precise optical lenses, prisms and optical instruments.

      Our company is located in the repute world-wide optical processing center, Shuangliu, Chengdu, China.

      Its former is the processing department of the Institute of Optics and Electronics of the Chinese Academy of Science.
