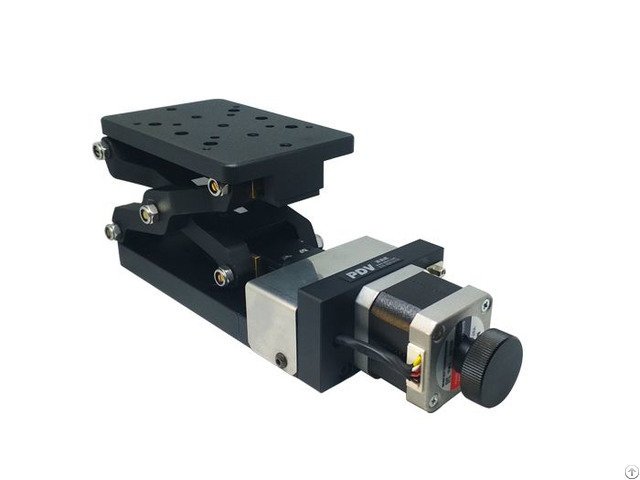

Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD401

Motorized Lab Jack

Motorized Stage

Electric Lifting Platform, Optical Sliding Lift

SPECIFICATION:

1 Item Number: PT-GD401

2 Travel Range: 60±2 mm

3 Dimension of Platform: 120mm x 80mm

4 Drive Mechanism: Grinding Screw

5 Travel Guide: Slide Rail

6 Stepper Motor (1.8°): SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle

7 Material – Finish: Aluminum Alloy - Black-Anodized

8 Load Capacity: 5kg

9 Weight: 1.15kg

Accuracy Specifications

1 Minimum Adjust Distance: 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver

2 Max Velocity: 5mm/sec

3 Repeatability: 10μm

4 Backlash: 40μm

5 Lost Motion: 30μ

ADVANTAGE:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.

The products can be produced according to your needs if it don't meet your need.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
