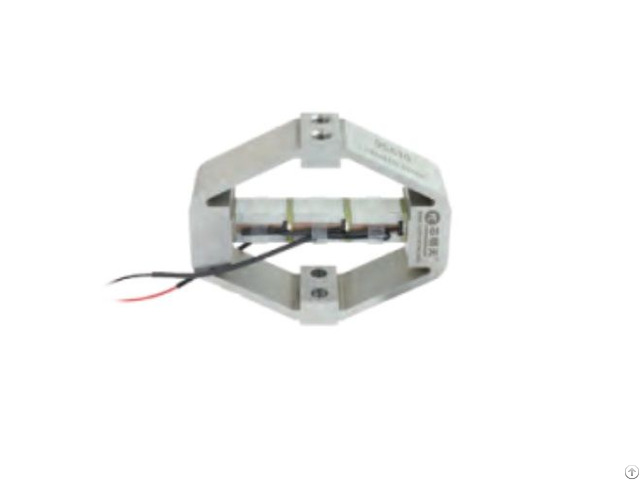

Flexible Piezoelectric Amplified Linear Actuator High Accuracy Micro Positioner - China

price: contact company for price

Principle

Piezo stacks produce deformation and displacement along the main axis, that is, the long axis direction, and the elliptical mechanical structure amplifies and outputs the displacement along the short axis direction.

Application

Probe scanning, optical mirrors positioning, optical switch, shutter, wafer testing, astronomy, focus positioning, laser cavity tuning, fiber coupling and deformation, FBG deformation, chopper, interferometer, piston machining, damping, dynamic control, valves, inkjet technology, droplet generators, etc.

Type A Technical Data

Type: 100A5

Active axes: X

Stroke: 100μm±20%

Blocking force: 67.0N

Stiffness: 0.67N/μm±2 0%

El.

capacitance±20%: 3.6μF

Unloaded resonant frequency: 1850Hz±20%

Material: steel

Sensor: optional


Company Contact:


  • Phone: 0451-86268790

  • Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin,China, Harbin , China , China

  • Email: Email


Published date: April 10, 2024

  • Business Description: CoreMorrow Ltd. focuses on research,development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.

    After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.

    We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
