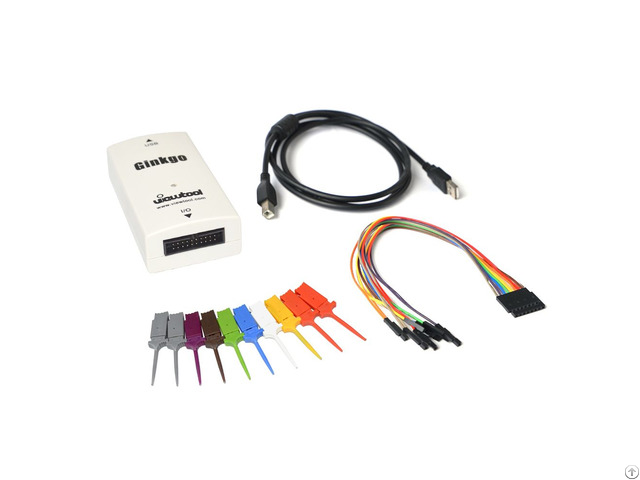

Ginkgo Usb I2c Adapter - China

Typical Applications: - I2C device or chip control and debugging

- Sensor with I2C interface testing.

- I2C EEPROM data reading and writing.

- I2C device fault detection

- Power management chips with PMBus/SMBus interface control.

- Assist in developing the I2C master.

- Pulse counter.

- Analog voltage measurement and GPIO input or output control.

- PWM signal output.

- USB to dual serial port/TTL (compatible with RS485 bus mode) Feature: - Support Windows, Linux, MAC OS.

- Support Android and Raspberry Pi.

- USB bus power supply without external power; 5V and 3.3V output; max current 500mA; short circuit protection.

- Support I2C Host/Master mode and Slave mode.

- 2 channels Hard(standard) mode up to 1.2M.

- 8 channels GPIO mode up to 400K.

- Support PMBus and SMBus and provide the API library.

- There is much kinds of free PC software compatible with the LabviEW interface to deal with different requirement.

- Support USB-SDI12, USB-EasyScale, USB-UART and counter, PWM output, ADC sampling, GPIO control and other functions.

- Multiple USB-I2C adapter can work in one PC at the same time (up to 100).

- It can output the RS485 signal (DE) and realize USB-RS485 by a TTL-RS485 module.

- The firmware can free update or change (such as SPI) by Own Bootloader program.

- Provide secondary development API and API detailed document and all kinds of languages platform application examples (Labview, C#, VC, Qt, Python, Labwindows/CVI, C++ Builder, VB, VB.

NET, Delphi, CodeBlocks, GCC, Eclipse, Android Studio etc.

).

Performance: - USB 2.0;bus-powered.

- 8 channels ADC (12bit) analog voltage signals (0~3.3V) measurements; max sampling rate 1MHz.

- 16 channels GPIO outgoing control high or low level and all pin compatible with TTL level.

- 4 channels Pulse counter input.

- 2 channels UART can output RS485 signal (DE); max baud rate up to 2.25Mbps.

- 8 channels PWM signal output; duty ratio (0%~100%); frequency range: 1Hz to 20MHz.

- 16 channels EasyScale bus signal output and bus timing can be adjusted.

- 2 channels SDI12 bus output (need external transceiver).

- Safe voltage: 0~5V

- Size: 103mm×53mm×28mm; Weight: ≈200g

- Temperature range: -40℃～85℃
