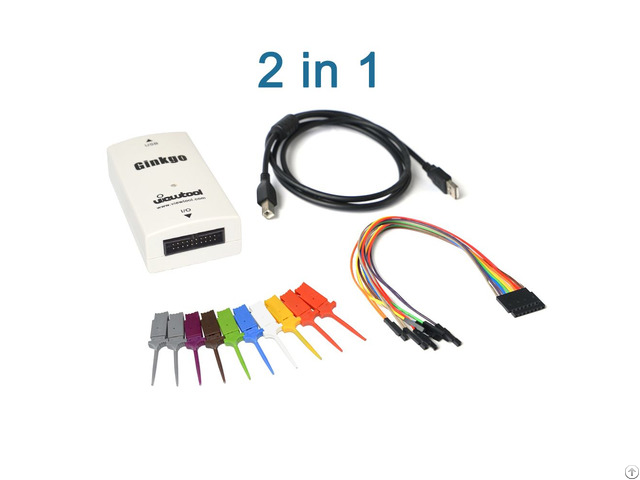

Ginkgo Usb I2c Spi Adapter - China

Typical Applications: - I2C or SPI device or chip control or debugging.

- Sensor with I2C or SPI interface testing.

- I2C EEPROM or SPI flash programming.

- I2C device fault detection.

- Power management chips with PMBus/SMBus interface control.

- Assist in developing the I2C or SPI master via slave mode.

- Pulse counter.

- Analog voltage measurement and GPIO input or output control.

- PWM signal output.

- USB to dual serial port/TTL (compatible with RS485 bus mode).

* The adapter can use both USB-I2C and USB-SPI, remove the USB-CAN function.

Do not have to update to other firmware, otherwise it will not be used, please use the bootloader to update the firmware of VTG204C if you update the other firmware.

Feature: - Support Linux, MAC OS, Windows.

- Support Android and Raspberry Pi.

- USB bus power supply without external power; 5V and 3.3V output; max current 500mA; short circuit protection.

- Support I2C and SPI Host/Master mode and Slave mode.

- 2 channels Hard(standard) mode up to 1.2M.

- 8 channels GPIO mode up to 400K.

- 5 channels CS output up to 36MHz, frequency arbitrary adjustable.

- Support PMBus and SMBus and provide the API library.

- Attached open source software can be used control nRF24L01 chip and MFRC522 card reader chip.

- There is much kinds of free PC software compatible with the LabviEW interface to deal with different requirement.

- Support USB-SDI12, USB-EasyScale, USB-UART and counter, PWM output, ADC sampling, GPIO control and other functions.

- Multiple USB-I2C/SPI adapter can work in one PC at the same time (up to 100).

- Block mode to transmit data.

Support GPIO mode, full duplex mode, half duplex mode and single bus mode.

- It can output the RS485 signal (DE) and realize USB-RS485 by a TTL-RS485 module.

- The firmware and software can free upgrade.

- Provide secondary development API and API detailed document and all kinds of languages platform application examples (Labview, C#, VC, Qt, Python, Labwindows/CVI, C++ Builder, VB, VB.

NET, Delphi, CodeBlocks, GCC, Eclipse, Android Studio etc.

).

Performance: - USB 2.0;bus-powered.

- 2 channels I2C Hard(standard) mode up to 1.2M.

- 8 channels I2C GPIO mode up to 400K.

- Standard SPI mode up to 36Mbps; data transmission speed up to 800KByte/s with PC.

- 8 channels ADC (12bit) analog voltage signals (0~3.3V) measurements; max sampling rate 1MHz.

- 16 channels GPIO outgoing control high or low level and all pin compatible with TTL level.

- 4 channels Pulse counter input.

- 2 channels UART can output RS485 signal (DE); max baud rate up to 2.25Mbps.

- 8 channels PWM signal output; duty ratio (0%~100%); frequency range: 1Hz to 20MHz.

- 16 channels EasyScale bus signal output and bus timing can be adjusted.

- 2 channels SDI12 bus output (need external transceiver).

- Safe voltage: 0~5V

- Size: 103mm×53mm×28mm; Weight: ≈200g

- Temperature range: -40℃～85℃
