Offer Optical Wedge And Prisms - China

price: 0.10 Dollar US$

Offer Optical Wedge And Prisms

Products Photos Catalog Optical Wedge Prisms Photos Catalog

Wedge

wedge prism can be used to bend a laser beam to a set angle.

In tandem, these prisms can serve as an anamorphic pair for correcting the elliptical shape of diode outputs or steering a beam anywhere within a circle described by the full angle 4θ, where θ is the deviation from a single prism.

Beam steering, done by rotating the two prisms independently, is generally used in imaging applications to scan a beam to different locations.

Specifications:

Material: BK7 Glass or other Optical Glass upon requestDimension Tolerance (mm):

+/-0.2 (General), +0/-0.05 (High Precision)

Angle Tolerance: 3 arc min.

(General), 3 arc sec.

(High Precision)

Flatness (per 25mm@633nm): λ/2(General) , λ/10 (High Precision)

Clear Aperture: >80% (small size), >95%(large size)

Surface Quality: 60/40 (General), 10/5 (High Precision)

Bevel (mm): 0.1-0.5

Coating: Uncoated or AR /Metal/HR coating--Unpon Request (1).

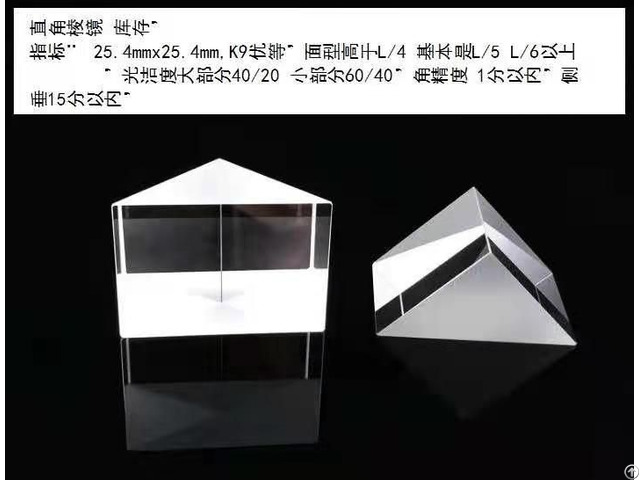

Besides Fused Silica, custom-made Right Angle Prisms, which are made of other optical materials, such as N-BK7, N-SF11, Pyrex, etc.

are available.

(2).

Typical dimension is 5.0mm, 10.0mm, 12.7mm, 15.0mm, 20.0mm, 25.4mm, 30.0mm, dimension from 2.0x2.0x2.0 mm to 150.0x150x150.0 mm is available.

(3).

Better precision such as 1 min., 30sec., 15sec., 10sec., and 5sec.

is available.

(4).

Typical bevel is 0.25mmx45o, other bevel from 0.1mmx45o to 0.5mmx45o is available upon request.

(5).

Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating prisms are available United photonics Technology


Company Contact:


  • Phone: +86 181 50811362

  • Address: 2nd Floor, Building 6, No.26, ChangLong Middle Road, TieLing industrial District, MinHou, Fuzhou, Ch, Minhou , fuzhou , China

  • Email: Email


Published date: May 24, 2022

  • Business Description: upt is a leading optical component manufacturer, Like waveplate, Prism, Window, BBO, LBO crytal ,Glan laser polarizer, Rochon polarizer and etc，

    we focus on them, With good quality and competitive price, Few quantity or batch all acceptable,

    If any requirements, pls contact us freely,Thanks,

    United photonics Technology
