Piezo Nano Motion Systems Z Nanopositioner - China
price: contact company for price

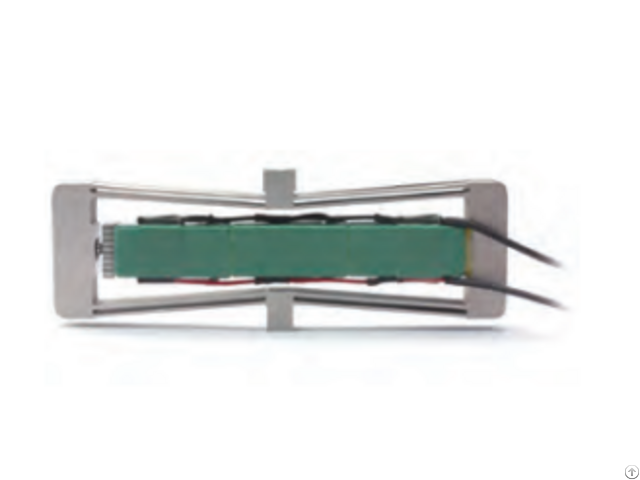

The amplified piezo actuator is an actuator that amplifies and outputs the displacement generated by low-voltage piezo stacks preloaded by a mechanical amplifying structure.
The amplified structure is an mechanical shell, and its material is generally steel.
In addition to providing optimized pre-tightening force for piezo stacks, it also protects piezo stacks from tensile forces that can cause irreversible or even fatal damage to piezo stacks.
The mechanical amplified structure also provides the user with mechanical interface, easy to integrate.
Type A Technical Data
Type: 100R7
Active axes: X
Stroke [μm]±20%: 100
Blocking force [N]: 80
Stiffness [N/μm]±20%: 0.8
El.
capacitance [μF]±20%: 7.2
Unloaded resonant frequency[Hz]±20%: 530
Material: steel
Sensor: optional You can contact us for other specifications and models.
