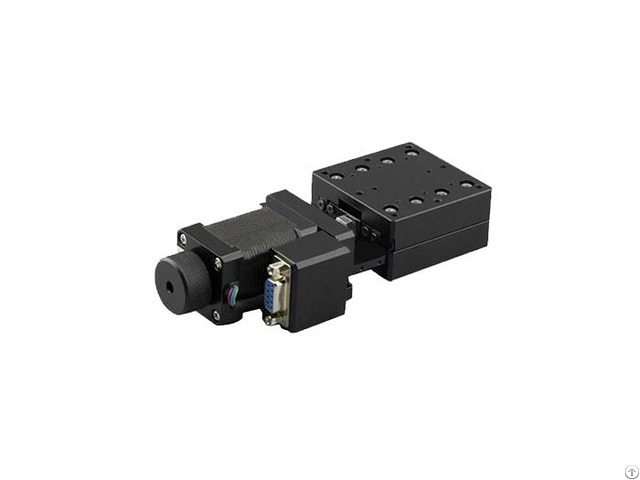

PP110-10-60 Precise Electric Translating Platform

Motorized Linear Stage

Motorized Stage

SPECIFICATION:

Model Number PP110-10-60

Platform 60×60mm

Travel Range ±10mm

Stepper Motor 35 Stepping Motor with 2-Phases + Screws∅8×P1

Travel Guide Cross Roller Guide

Step Angel 1.8°

Phase Current 0.8A

Resolution Ratio Step/Half step 5μm/2.5μm

Max Velocity 2.5mm/sec

Repeating Positioning Accuracy 3μ

Absolute Positioning Accuracy 10μ

Parallelism 30μm

Driving Parallelism 10μm

Load Capacity Parallel: 10kgf(98N) Vertical: 5kgf(49N)

Weight 1.1kg

Surface Preparation Aluminum Alloy-Black-anodized

The design of limited switches and zero switch protect products and supply convenience;

Standard interface is convenient for singal’s output.

The back of motorized stages has handwheel, it is for convenience for adjustment;

Standard hole is so easy for combine with other units, ensure convenience for multi-dimensional system;

standard stepper motor and DB9 interface, choose to any controller according to requirement

PRODUCT DETAILS:

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
