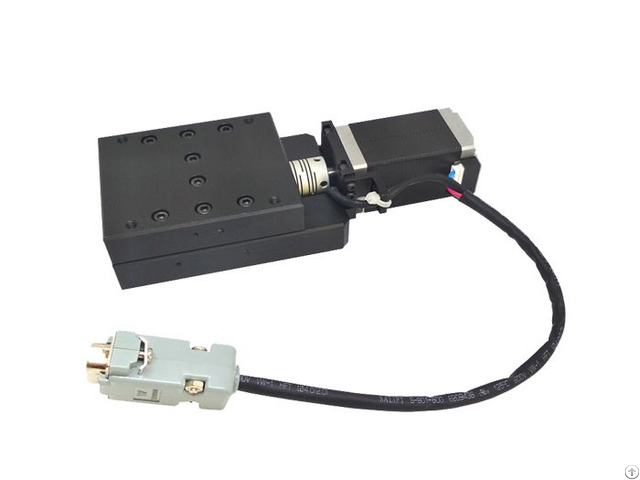

PP110-30H Precise Electric Translating Platform, X-axis Displacement Station

Motorized Linear Stage

Motorized Stage

SPECIFICATION:

Item Number: PP110-30

Travel range: 30 mm

Platform: 60mm×70mm

Bearing Construction: Grinding Lead Screw(1mm of leading)

Travel Guide: Crossed Roller Bearing

Stepper Motor(1.8°): 28 stepper motor- SHINANO

Material: Aluminum Alloy - Black-Anodized

Load Capacity: 5kgs

Weight: 0.58kgs

Accuracy Specifications

Design Resolution: 5μ/Pulse (Non-MS Driver)

Max Velocity: 5mm/sec

Bi-directional: 2μm

Absolute Accuracy: 10μm

Straightness: 5μ

Parallelization: 20μm

Pitching: 30”

Yawing: 25″

Backlash: 2μm

Lost Motion: 2μm The stepper motor with 2-phase and 1.8° step angle will be sued in this model

Low-profile, high-accuracy and apply to low bearing capacity, low speed.

The structure of crossed-roller bearing requires the precise movement.

Original position and limit switches are at both ends which can supply the precision positioning and protection.

Applies to use in single axis or assemble into multi-axis stages
