Xy Axismanual Linear Stage Manual Displacement Station Pt Xy24 80c R L - China
price: contact company for price

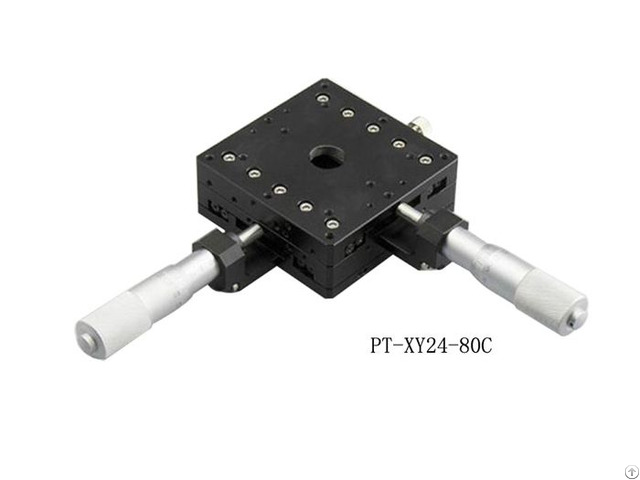

XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
Manual Linear Stage
Manual Stage
Model Number PT-XY24-80C PT-XY24-80R PT-XY24-80L
Actuator Type Micrometer Head
Operating Position Center Right Left
Minimum Scale 10μm/degree
Platform Size 80×80mm
Travel Range ±12.5mm
Travel Guide Crossed Roller Bearing
Load Capacity 4kgf(29.4N)
Moving Precision Straightness 3μm Pitching 40” Yawing 20”
Parallelism 50μm
Driving Parallelism 20μm
Weight 1.8kg
Surface Material Aluminum Alloy BLACK-Anodized
ADVANTAGE: PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.
They can be any combination, building block structure, can satisfy any scene usage requirement.
Company Contact:
- Posted By: Beijing PDV Instrument Co., Ltd.
- Phone: 86-10-82613119
- Address: Room 1601, #2 Building, No.108, Zhichun Road, Haidian District Beijing, China, Beijing , Beijing , China
- Email:
- Website: https://www.pdvcn.com/
Published date: October 17, 2018
- Business Description: Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises.
Since 2005, we have been serving the scientific research institutes and universities.
We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.
) according to the needs of customers.
Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, weve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
