Z Axis Micrometer Positioning Piezo Amplified Actuator For Microimaging - China

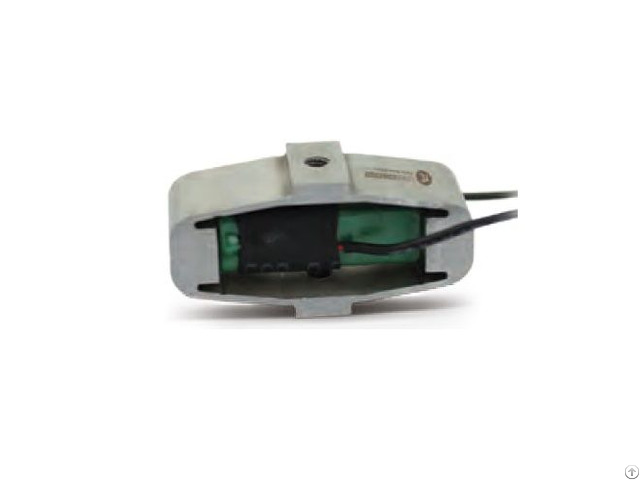

The amplified piezo actuator is an actuator that amplifies and outputs the displacement generated by low-voltage piezo stacks preloaded by a mechanical amplifying structure.

The amplified structure is an mechanical shell, and its material is generally steel.

In addition to providing optimized pre-tightening force for piezo stacks, it also protects piezo stacks from tensile forces that can cause irreversible or even fatal damage to piezo stacks.

The mechanical amplified structure also provides the user with mechanical interface, easy to integrate.

Principle

Piezo stacks produce deformation and displacement along the main axis, that is, the long axis direction, and the elliptical mechanical structure amplifies and outputs the displacement along the short axis direction.

Application

Probe scanning, optical mirrors positioning, optical switch, shutter, wafer testing, astronomy, focus positioning, laser cavity tuning, fiber coupling and deformation, FBG deformation, chopper, interferometer, piston machining, damping, dynamic control, valves, inkjet technology, droplet generators, etc.

Type A Technical Data

Type: 500A10

Active axes: X

Stroke: 500μm±20%

Blocking force: 22.5N

Stiffness: 0.045N/μm± 20%

El.

capacitance±20%: 43μF


Unloaded resonant frequency: 390Hz±20%

Material: steel

Sensor: optional
