Cnc Beam Drilling Machine - China

CNC Beam Drilling Machine, CNC Machine for Steel Structure, H-Beam Drilling Machine, Beam Drilling Machine APPLICABLE INDUSTRY:

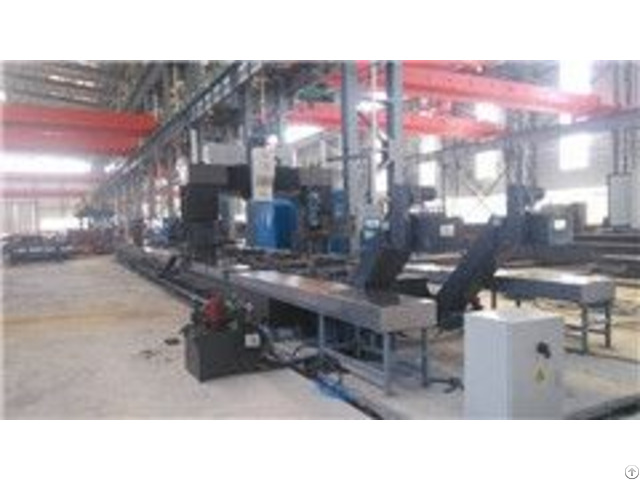

This machine is used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.

ADVANTAGES:

There are 3 independent drilling units, one vertical and two horizontal (right and left).

3 drilling heads can drill holes simultaneously.

Also, the drilling head is self-controlled stroke.

As long as inputting dimensions of workpiece, the processing program can be memorized, selected, displayed and transmitted according to wokpiece at will.

CNC and PLC systems, CRT displaying.

Programming Microsoft is based on Windows.

Programming Microsoft can be in any computer to run programing off-site.

It directly by copy/internet transfer to equipment.

The feeding of the workpiec is driven by rollers, which are controlled by hydraulic and mechanical systems.

The measuring wheel measures the actual feeding distance of workpiece and feeds back the result to control system to guarantee the precision the longitude position of holes, Drilling heads are equipped with main shaft reducer.

Company Contact:

• Posted By: Jinan Fast CNC Machinery Co., Ltd

• Phone: 0086-15098878331

• Address: NO.8521 WEST JINGSHI ROAD HCANGQING DISTRICT, JINAN,shandong,China, shandong , JINAN , China

• Email:

• Website: http://www.jnfate.com

• Business Description: JINAN FAST CNC MACHINERY CO., LTD is devoted to design and manufacture complete processing machines working on the H-beam, U-beam, angles, plates and tubesheets, flanges and other steel profiles with punching, drilling, milling, boring function.

  JINAN FAST CNC MACHINERY CO., LTD is a professional manufacturer of profile and plate material auto-processing line and machinery.

  MAIN PRODUCTS: CNC full-automatic angle steel processing line, CNC joint plate punching& drilling machine, High-speed CNC drilling& milling machine for tube sheet/flange (PZG), CNC Beam Drilling machine (SWZ), CNC plate drilling& milling machine，CNC drilling& milling tapping machine, Gantry type drilling& milling& boring machine center, double-column rotation angle band-sawing machine, Angel notching machine, (Rolling type) Angle straightening machine, Hydraulic angle cutting machine, Hydraulic marking machine, Plate chamfering ( beveling) machine, Universal& special purpose hydraulic machines, etc.

  Focusing on customers value and requirements, JINAN FAST CNC MACHINERY CO., LTD is always ready to establish friendly business relationship with old and new customers for a brilliant future.

  Other Business--Precision Hole Processing

  Drilling sieve plate processing such as paper sieve plates, pulp filter sieve plates, mud extruder sieve plates, mining machinery sieve plates, and environmental protection equipment separating sieve plates, dehydration sieve plates, and vibration sieve plates.

  Drilling pressure container tube plates and stainless steel plates.
