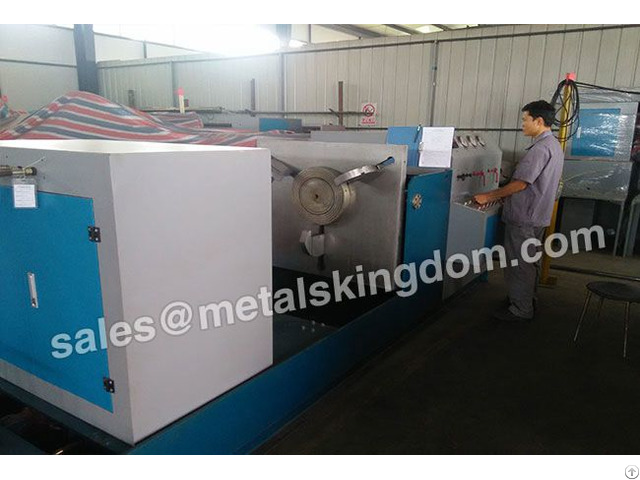

Horizontal Type SYTW600/5-32 Top Pressure Valve Test Bench

Horizontal Type Valve Pressure Test Bench

Valve Pressure Test Bench

3) Valve clamping type is up pressure, clamp is through press on the sides of direct-flange connection valves

4) Standard equips with High and low pressure water pump pressure systems, gas supercharging is selection

3 - Technical parameters:

Valve Nominal Diameter DN 100-600mm(straight-throug h Flange connection valves)

Maximium Test Pressure PN 31.5Mpa(4500LB) Max

Nominal Voltage Exchange 380V

Rated Power 8.5KW

Line Voltage Exchange 220V/24V

Hydraulic oil N46 hydraulic Oil(provide by user

The oil temperature is Max 60 degrees centigrade, Min 5 degrees centigrade

Oil circuit system Pressure 28Mpa max

Test Medium Water(Allows to add rust inhibitor) kerosene or other liquid

it’s viscosity not higher than water

Test temperature(Envioment Temp) 5 degree centigrade to 40 degree centigrade

Transverse clamping Length scope 950mm

Radial distance 100-1350mm

Max Clamping Force 220(T)

Weight 4.5tons

Size 3900×1410×1450(mm)

4 - Operation :

1)Before use, press "pump" first, check motor steering and check whether the action is accurate and reliable.

2) Clamp valve

Valve’s clamping:

a) On the premise of ensuring safety, the valve is hoisted to the test bench working area.

b) Put the suitable sealing ring in the sealing plate according to the tested valve.

c) Put the tested valve in place .

d) Open “forward”postion of the "screw forward and backward"knob, opens "into" position, the screw will quickly move to the end of the valve end 3-5 centimeters after the stop.

According to the different length of the valve rotation "screw advance and retreat" "screw forward and back" knob to control the screw to move the sealing disk to the right position.

e) Press the "top tight" button to clamp the valve.

Before the pressure, the oil cylinder should be determined not to return, if not returned, should first press the "loose" button to the top pressure cylinder back.

5 - Comparison Table for Valve Nominal Diameter and Max Test Pressure

Valve Nominal Diameter DN(mm) 200max 250 300 400 500 600

Max Test PressurePN(MPa) 31.5 28 20 11 7.2 5 Comparision Table of Valve Sealing Pressure and Test Pressure

SYTW 600/5-32Valve Test Bench Pressure Comparision Table

Norminal Pressure(MPa) 2.5 4.0 6.4 10.0 16.0 20.0 25.0 32.0

Test Pressure(MPa) 3.75 6.0 9.6 15.0 24.0 30.0 37.5 48.0

Norminal Diameter(DN) Sealing Pressure(MPa)

in mm 8 200 2.2 3.5 5.6 8.8 14 17.6 10 250 3.5 8.8 13.7 22.0 27.5 12 300 5.0 8.0 12.7 19.8 14 350 6.8 10.8 17.2 27.0 16 400 8.8 14.0 22.5 18 450 11.2 17.8 28.0 20 500 13.8 22.0 22 550 16.6 26.6 24 600 19.8 Hot Sale Various High Quality Valve Grinder, Valve Test Bench, Pipe Beveling & Cutting Machine.
