M 100a Plane Globe Valve Grinding Machine - China

M-100A Plane Globe Valve Grinding Machine

Portable Valve Grinding and Lapping Machine For Globe/Safty Valve

Portable Valve Grinding and Lapping Machine Grinding scope:

Flat globe-valve(Safety Valve): Φ20mm-175mm

Flat valve seats

Motor power: 750W

Rated Voltages: 220V/50HZ

Allowed adjustable length: L≤250mm

Gross weight: 23.5kg

1 - M-100 Portable Globe&Safety Valve Grinding Machine Overview

Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product.

It is mainly used for grinding DN20-150mm flat Globe valve, cone valves and safety valves, The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.

It is widely used in the industries such power generation, petroleum, chemical and metallurgy .

It has the following characteristics:

Light, compact, and easy to carry

Split-type assembly makes installation easy and fast

Easy to be used

High efficiency, good grinding quality

Maintenance in the site without valve disassembles and assembles

2 - Technical Parameter

Item M-100 M-100A for Flat Globe Valve M-100C for Cone Valve

Grinding Range(mm) DN20-150mm

Offline gate valve, globe valve Dn20--150mm

Flat Globe Valve, Safety Valve, Flat Globe Vavle Seat DN20-100mm

Cone-valve

Valve seat angle: 30°, 40°, 60°, 75°, 90°can be Selected

Voltage(V) 220 220 220

Power(W) 750 750 750

Frequency(HZ) 50 50 50

Max Grinding Depth(mm) 250 250 250

Gross Weight(kg) 26 23.5 23.5

3 - Part list and installation pictures

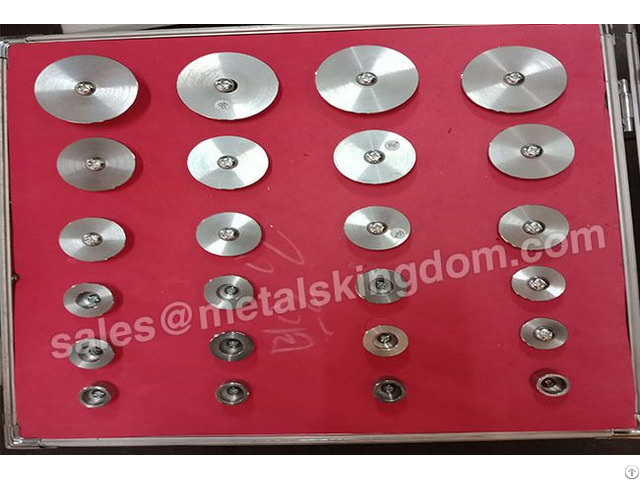

The said grinder is composed of motors, hand-lift set, driving shafts, Centering Sleeve, lapping head, paper-pressure, gasket, nut and so on.

The following pictures separately expressed installation for various valves.

Cone Valves Grinding Machine, Plane Globe Valve Grinde, Portable Safety Valve Grinded Machine

Hot Sale Various High Quality Valve Grinder, Valve Test Bench, Pipe Beveling & Cutting Machine.

The portable & Stationary Valve Grinding Machine is suitable for Gate Valve, Globe Valve, Safety Valve.

As fames China Valve Seat grinded Machine, High quality and factory price will give you.
